Overview

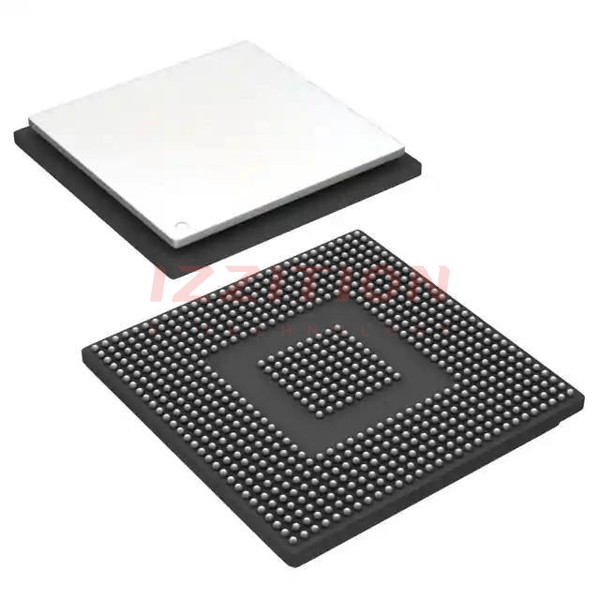

The TMS320TCI6482BGTZ8 is a high-performance digital signal processor (DSP) manufactured by Texas Instruments. This 32-bit DSP is part of the TMS320C64x family and is designed for demanding applications that require significant processing power and low power consumption. The device features a 66.6 MHz clock frequency and is built using CMOS technology, ensuring efficient operation and reliability. The TMS320TCI6482BGTZ8 is packaged in a 24x24 mm, 0.80 mm pitch, plastic BGA-697 package, making it suitable for a variety of embedded systems and signal processing applications.
Key Specifications
| Attribute | Value |
|---|---|
| Part Number | TMS320TCI6482BGTZ8 |
| Manufacturer | Texas Instruments |
| Part Category | Digital Signal Processors |
| Bit Size | 32-bit |
| External Data Bus Width | 64-bit |
| Clock Frequency-Max | 66.6 MHz |
| Package Type | FBGA (Fine Pitch Ball Grid Array) |
| Package Size | 24 x 24 mm, 0.80 mm pitch |
| Number of Terminals | 697 |
| Operating Temperature | 0°C to 90°C |
| Supply Voltage-Nom | 1.2 V |
| Supply Voltage-Min | 1.164 V |
| Supply Voltage-Max | 1.236 V |
| RAM (words) | 8192 |
| Low Power Mode | Yes |
| Technology | CMOS |
Key Features
- High-Performance Processing: The TMS320TCI6482BGTZ8 offers a 66.6 MHz clock frequency, making it suitable for high-speed signal processing applications.
- Multiple Bus Architecture: The device features multiple internal bus architectures, enhancing data transfer efficiency and overall system performance.
- Low Power Consumption: The DSP includes low power modes, reducing energy consumption and making it ideal for battery-powered devices.
- Large On-Chip RAM: With 8192 words of on-chip RAM, the TMS320TCI6482BGTZ8 provides ample memory for demanding applications.
- Advanced Packaging: The fine pitch ball grid array (FBGA) package ensures reliable and efficient thermal management and signal integrity.
- Boundary Scan Capability: The device supports boundary scan, facilitating easier testing and debugging of the system.
Applications
- Telecommunications: The TMS320TCI6482BGTZ8 is used in various telecommunications equipment, such as base stations, routers, and switches, due to its high processing capabilities and low power consumption.
- Aerospace and Defense: Its reliability and performance make it a suitable choice for aerospace and defense applications, including radar systems and communication equipment.
- Industrial Automation: The DSP is used in industrial automation systems for real-time signal processing, control, and monitoring.
- Medical Devices: It is employed in medical imaging and diagnostic equipment, where high-speed signal processing is critical.
- Consumer Electronics: The TMS320TCI6482BGTZ8 can be found in advanced consumer electronics, such as audio and video processing devices.
Q & A
- What is the clock frequency of the TMS320TCI6482BGTZ8?
The clock frequency of the TMS320TCI6482BGTZ8 is 66.6 MHz.
- What is the package type of the TMS320TCI6482BGTZ8?
The package type is a fine pitch ball grid array (FBGA) with 697 terminals.
- What is the operating temperature range of the TMS320TCI6482BGTZ8?
The operating temperature range is from 0°C to 90°C.
- Does the TMS320TCI6482BGTZ8 support low power modes?
Yes, the TMS320TCI6482BGTZ8 supports low power modes to reduce energy consumption.
- How much on-chip RAM does the TMS320TCI6482BGTZ8 have?
The TMS320TCI6482BGTZ8 has 8192 words of on-chip RAM.
- Is the TMS320TCI6482BGTZ8 still in production?
No, the TMS320TCI6482BGTZ8 is discontinued but may still be available from some distributors.
- What is the supply voltage range for the TMS320TCI6482BGTZ8?
The supply voltage range is from 1.164 V to 1.236 V (nominal 1.2 V).
- Does the TMS320TCI6482BGTZ8 support boundary scan?
Yes, the TMS320TCI6482BGTZ8 supports boundary scan for easier testing and debugging.
- What are some common applications of the TMS320TCI6482BGTZ8?
Common applications include telecommunications, aerospace and defense, industrial automation, medical devices, and consumer electronics.
- What technology is used in the TMS320TCI6482BGTZ8?
The TMS320TCI6482BGTZ8 is built using CMOS technology.
