Overview
The TMS320C6415TBGLZA7 is a high-performance fixed-point digital signal processor (DSP) developed by Texas Instruments. This device is part of the C64x generation of DSPs, known for their advanced Very-Long-Instruction-Word (VLIW) architecture and VelociTI.2 extensions. The TMS320C6415T is designed to deliver exceptional processing power, making it suitable for a wide range of applications requiring intensive signal processing.
Key Specifications
| Specification | Details |
|---|---|
| Processor Speed | Up to 720 MHz |
| Instruction Cycle Time | 1.39 ns (at 720 MHz) |
| MIPS | Up to 5760 MIPS |
| Functional Units | Eight highly independent functional units, including six ALUs and two multipliers |
| Memory | Internal memory; two external memory interfaces (EMIFA: 64-bit, EMIFB: 16-bit) |
| External Memory Space | Up to 1280 M-Byte total addressable external memory space |
| EDMA Controller | Enhanced Direct-Memory-Access (EDMA) controller with 64 independent channels |
| PCI Interface | 32-Bit/33-MHz, 3.3-V PCI Master/Slave Interface conforming to PCI Specification 2.2 |

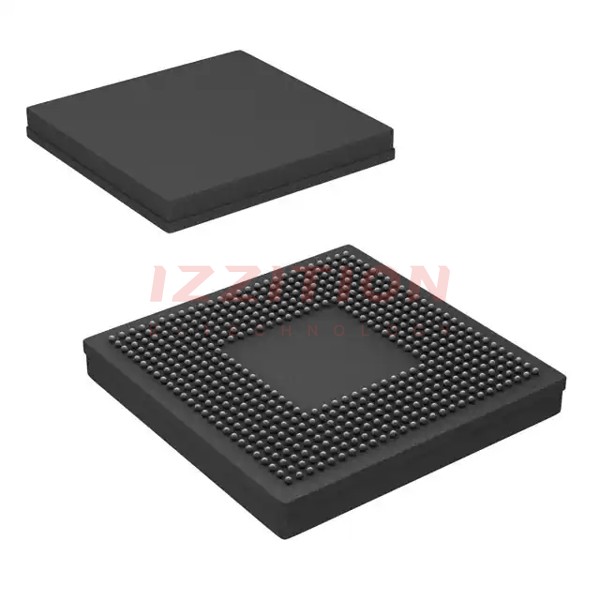

| Package Type | 532-Pin Ball Grid Array (BGA) Package (GLZ, ZLZ, and CLZ suffixes) |
| Process Technology | 0.13-µm/6-Level CMOS process |
| I/O Voltage | 3.3-V I/Os, 1.4-V internal (at 600 and 720 MHz) |
Key Features
- High-Performance DSP Core: VelociTI.2 extensions to the VelociTI VLIW architecture, supporting up to eight 32-bit instructions per cycle and twenty-eight operations per cycle.
- Advanced Functional Units: Six ALUs (32-/40-bit) and two multipliers, each supporting various arithmetic operations per clock cycle.
- External Memory Interfaces: Two EMIFs (EMIFA: 64-bit, EMIFB: 16-bit) with glueless interface to various memory types.
- EDMA Controller: Enhanced Direct-Memory-Access controller with 64 independent channels.
- PCI Interface: 32-Bit/33-MHz, 3.3-V PCI Master/Slave Interface conforming to PCI Specification 2.2.
- Peripheral Interfaces: Three multichannel buffered serial ports, UTOPIA Level 2 Slave ATM controller, and SPI compatible interface.
- General-Purpose Timers and GPIO: Three 32-bit general-purpose timers and sixteen general-purpose I/O pins.
- Flexible PLL Clock Generator: Supports various clock frequencies.
- JTAG Compatibility: IEEE-1149.1 (JTAG) boundary-scan-compatible.
Applications
- Telecommunications: Ideal for applications involving T1/E1, MVIP, and SCSA framers.
- Audio and Video Processing: Suitable for real-time audio and video processing due to its high processing power and advanced functional units.
- Industrial Automation: Can be used in industrial control systems requiring high-speed signal processing.
- Medical Imaging: Applicable in medical imaging devices that require intensive signal processing.
- Aerospace and Defense: Used in various military and aerospace applications requiring high-performance signal processing.
Q & A
- What is the maximum clock speed of the TMS320C6415T?
The maximum clock speed of the TMS320C6415T is up to 720 MHz.
- How many instructions can the TMS320C6415T execute per cycle?
The TMS320C6415T can execute up to eight 32-bit instructions per cycle.
- What type of memory interfaces does the TMS320C6415T support?
The TMS320C6415T supports two external memory interfaces: a 64-bit EMIFA and a 16-bit EMIFB.
- Does the TMS320C6415T support PCI interface?
Yes, the TMS320C6415T supports a 32-Bit/33-MHz, 3.3-V PCI Master/Slave Interface conforming to PCI Specification 2.2.
- How many EDMA channels does the TMS320C6415T have?
The TMS320C6415T has an Enhanced Direct-Memory-Access (EDMA) controller with 64 independent channels.
- What is the package type of the TMS320C6415TBGLZA7?
The package type is a 532-Pin Ball Grid Array (BGA) Package (GLZ, ZLZ, and CLZ suffixes).
- Is the TMS320C6415T JTAG compatible?
Yes, the TMS320C6415T is IEEE-1149.1 (JTAG) boundary-scan-compatible.
- What is the process technology used in the TMS320C6415T?
The TMS320C6415T uses a 0.13-µm/6-Level CMOS process.
- What are the typical applications of the TMS320C6415T?
The TMS320C6415T is typically used in telecommunications, audio and video processing, industrial automation, medical imaging, and aerospace and defense applications.
- Is the TMS320C6415T pin-compatible with other C64x devices?
Yes, the TMS320C6415T is pin-compatible with the TMS320C6414T and TMS320C6416T devices under certain conditions.
