Overview

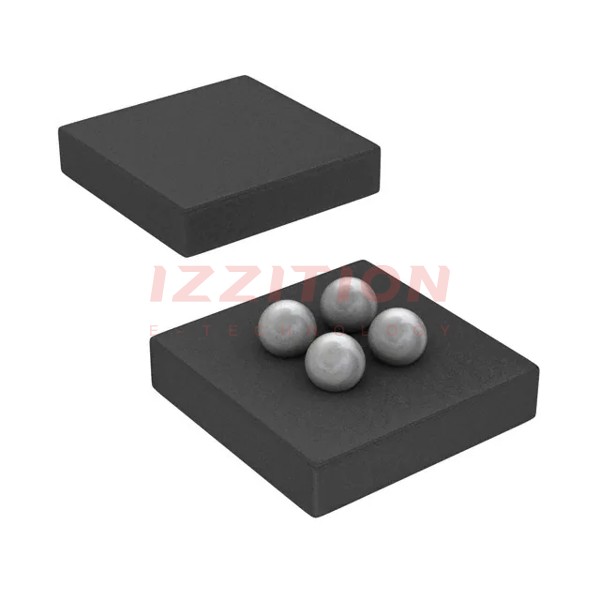

The TMP103AYFFR is a highly compact, digital temperature sensor manufactured by Texas Instruments. Designed for precision temperature monitoring, this sensor is ideal for applications requiring minimal space and low power consumption. The TMP103AYFFR is part of Texas Instruments' extensive portfolio of temperature sensors, targeting industries such as consumer electronics, industrial automation, and automotive systems. Its unique selling points include its ultra-small form factor, high accuracy, and low power consumption, making it a competitive choice for modern temperature sensing applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Operating Temperature Range | -40 to +125 | °C | |
| Accuracy | ±1 | °C | From -10°C to +85°C |
| Supply Voltage | 1.4 to 3.6 | V | |
| Current Consumption | 3 | µA | Typical |
| Resolution | 12 | bit | |
| Interface | I2C/SMBus | ||
| Package | DSBGA | 4-pin, 0.8 mm x 0.8 mm |
Key Features
- Ultra-small form factor: Ideal for space-constrained applications.
- Low power consumption: Extends battery life in portable devices.
- High accuracy: Ensures reliable temperature monitoring.
- Digital output: Simplifies integration with microcontrollers and other digital systems.
- Wide operating temperature range: Suitable for harsh environments.
Applications
The TMP103AYFFR is widely used in various industries due to its compact size and precision. In consumer electronics, it is employed in smartphones, tablets, and wearables for thermal management. In industrial automation, it monitors equipment temperature to prevent overheating. Additionally, it is utilized in automotive systems for climate control and battery temperature monitoring. Its low power consumption and small footprint make it an excellent choice for IoT devices and portable applications.
Q & A
1. What is the operating voltage range of the TMP103AYFFR?
The operating voltage range is 1.4V to 3.6V.
2. What is the accuracy of the TMP103AYFFR?
It has an accuracy of ±1°C from -10°C to +85°C.
3. What is the typical current consumption?
The typical current consumption is 3 µA.
4. What interface does the TMP103AYFFR use?
It uses an I2C/SMBus interface.
5. What is the package type of the TMP103AYFFR?
It comes in a 4-pin DSBGA package measuring 0.8 mm x 0.8 mm.
6. Can the TMP103AYFFR operate in harsh environments?
Yes, it has a wide operating temperature range of -40°C to +125°C.
7. Is the TMP103AYFFR suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
8. What is the resolution of the temperature sensor?
It has a 12-bit resolution.
9. Can the TMP103AYFFR be used in IoT devices?
Yes, its compact size and low power consumption make it suitable for IoT applications.
10. Where can I find the datasheet for the TMP103AYFFR?
The datasheet is available on the Texas Instruments official website.
