Overview

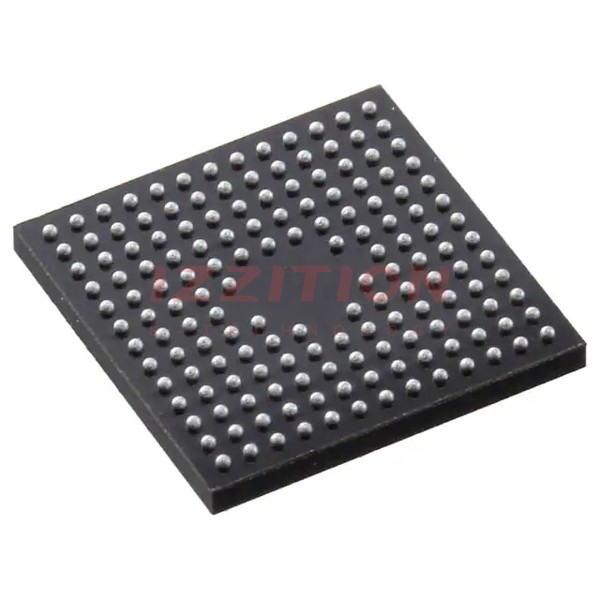

The TM4C123GH6ZRBT7 is a high-performance microcontroller unit (MCU) produced by Texas Instruments. It belongs to the Tiva C Series, specifically designed for embedded applications requiring robust processing capabilities and versatile connectivity options. This MCU is ideal for developers targeting industrial automation, consumer electronics, and IoT devices. Its standout features include an ARM Cortex-M4F core, integrated peripherals, and low-power operation, making it a competitive choice for demanding embedded systems.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core | ARM Cortex-M4F | - | With FPU |
| Clock Speed | 80 | MHz | - |
| Flash Memory | 256 | KB | - |
| SRAM | 32 | KB | - |
| Operating Voltage | 2.7 to 3.6 | V | - |
| GPIO Pins | 64 | - | - |
| Communication Interfaces | UART, I2C, SPI, CAN | - | - |
| Analog-to-Digital Converter | 12-bit, 2 MSPS | - | 12 channels |
| Timers | 6 x 16/32-bit | - | - |
| Package | LQFP-64 | - | - |
Key Features
- ARM Cortex-M4F Core: Delivers high performance with floating-point unit (FPU) for advanced computations.
- Integrated Peripherals: Includes UART, I2C, SPI, and CAN interfaces for versatile connectivity.
- Low-Power Operation: Optimized for energy-efficient applications.
- Advanced Analog Capabilities: Features a 12-bit ADC with 2 MSPS and 12 channels for precise signal processing.
- Comprehensive Development Tools: Supported by Texas Instruments' TivaWare software suite for streamlined development.
Applications
The TM4C123GH6ZRBT7 is widely used in various industries, including:
- Industrial Automation: Ideal for motor control, PLCs, and factory automation systems due to its robust processing and connectivity.
- Consumer Electronics: Suitable for smart home devices, wearables, and IoT applications.
- Automotive Electronics: Used in infotainment systems, vehicle control units, and telematics.
- Medical Devices: Supports precision monitoring and control in medical equipment.
Q & A
1. What is the core architecture of the TM4C123GH6ZRBT7?
It features an ARM Cortex-M4F core with a floating-point unit (FPU).
2. What is the maximum clock speed of this MCU?
The maximum clock speed is 80 MHz.
3. How much flash memory does it have?
It has 256 KB of flash memory.
4. What is the operating voltage range?
The operating voltage ranges from 2.7 V to 3.6 V.
5. How many GPIO pins are available?
There are 64 GPIO pins.
6. What communication interfaces are supported?
It supports UART, I2C, SPI, and CAN interfaces.
7. What is the resolution of the ADC?
The ADC is 12-bit with a sampling rate of 2 MSPS.
8. What package does the TM4C123GH6ZRBT7 come in?
It comes in an LQFP-64 package.
9. Is this MCU suitable for low-power applications?
Yes, it is optimized for low-power operation.
10. What development tools are available for this MCU?
Texas Instruments provides the TivaWare software suite for development.
