Overview

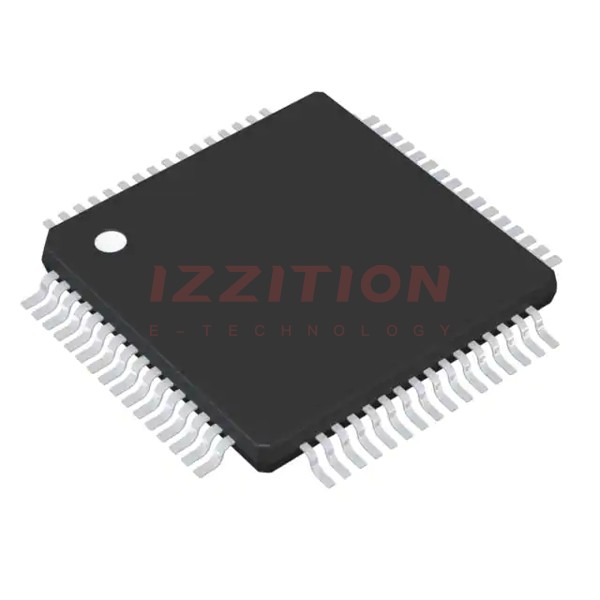

The TM4C1230D5PMI7R is a 32-bit microcontroller from Texas Instruments, based on the Arm Cortex-M4F processor. This microcontroller operates at a maximum frequency of 80 MHz and is packaged in a 64-pin LQFP (Low-Profile Quad Flat Package). It is part of the Tiva C Series, which is known for its high performance and low power consumption, making it suitable for a wide range of embedded system applications.
Key Specifications
| Parameter | Value |
|---|---|
| Processor | 32-bit Arm Cortex-M4F |
| Operating Frequency | Up to 80 MHz |
| Flash Memory | 64 kB |
| RAM | 24 kB |
| Package Type | 64-pin LQFP |
| Operating Temperature Range | -40°C to 85°C |
| Communication Interfaces | CAN (Controller Area Network) |
Key Features
- High-performance 32-bit Arm Cortex-M4F processor with a maximum operating frequency of 80 MHz.
- 64 kB of flash memory and 24 kB of RAM.
- Integrated CAN (Controller Area Network) interface for automotive and industrial applications.
- Low power consumption, making it suitable for battery-powered devices.
- Support for the TivaWare software development kit (SDK) for streamlined development.
Applications
The TM4C1230D5PMI7R microcontroller is versatile and can be used in various applications, including:
- Automotive systems: Due to its CAN interface, it is suitable for vehicle control systems and diagnostics.
- Industrial control systems: It can be used in automation, motor control, and other industrial automation tasks.
- Medical devices: Its low power consumption and high performance make it suitable for medical devices such as portable diagnostic equipment.
- Consumer electronics: It can be used in smart home devices, wearables, and other consumer electronics requiring high performance and low power.
Q & A
- What is the processor type of the TM4C1230D5PMI7R?
The TM4C1230D5PMI7R is based on the 32-bit Arm Cortex-M4F processor. - What is the maximum operating frequency of the TM4C1230D5PMI7R?
The maximum operating frequency is up to 80 MHz. - How much flash memory and RAM does the TM4C1230D5PMI7R have?
The TM4C1230D5PMI7R has 64 kB of flash memory and 24 kB of RAM. - What type of package does the TM4C1230D5PMI7R come in?
The TM4C1230D5PMI7R comes in a 64-pin LQFP package. - What is the operating temperature range of the TM4C1230D5PMI7R?
The operating temperature range is from -40°C to 85°C. - Does the TM4C1230D5PMI7R support any specific communication interfaces?
Yes, it supports the CAN (Controller Area Network) interface. - What software development kit (SDK) is supported by the TM4C1230D5PMI7R?
The TM4C1230D5PMI7R is supported by the TivaWare SDK. - In what types of applications is the TM4C1230D5PMI7R commonly used?
The TM4C1230D5PMI7R is commonly used in automotive, industrial control, medical devices, and consumer electronics. - Why is the TM4C1230D5PMI7R suitable for battery-powered devices?
The TM4C1230D5PMI7R is suitable for battery-powered devices due to its low power consumption. - Where can I find detailed specifications and documentation for the TM4C1230D5PMI7R?
Detailed specifications and documentation can be found on the Texas Instruments website and other authorized distributors like Digi-Key, Mouser, etc.
