Overview
The TLV9062IDSGR is a dual operational amplifier (op amp) produced by Texas Instruments. It is part of the TLV906x family, which includes single, dual, and quad channel variants. This device is designed for low-voltage operation, ranging from 1.8V to 5.5V, and offers performance specifications similar to the OPAx316 and TLVx316 devices. The TLV9062 is highly cost-effective and suitable for applications requiring low-voltage operation, a small footprint, and high capacitive load drive capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | Dual |
| Supply Voltage Range | 1.8V to 5.5V |
| Unity-Gain Bandwidth | 10MHz |
| Input Offset Voltage | ±0.3mV |
| Broadband Noise | 10nV/√Hz |
| Input Bias Current | 0.5pA |
| Quiescent Current | 538µA |
| Operating Temperature Range | -40°C to 125°C |

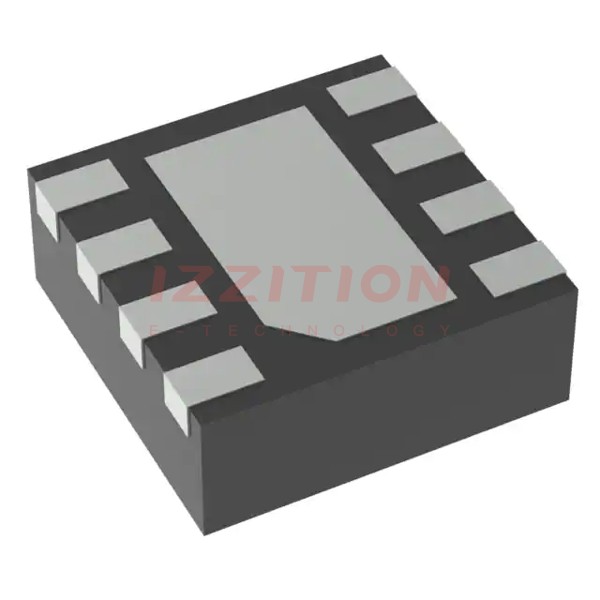

| Package Type | WSON-8 (2x2) |
Key Features
- Rail-to-rail input and output swing capabilities
- Low input offset voltage: ±0.3mV
- Unity-gain bandwidth: 10MHz
- Low broadband noise: 10nV/√Hz
- Low input bias current: 0.5pA
- Low quiescent current: 538µA
- Unity-gain stable
- Internal RFI and EMI filter
- Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
- Shutdown version available (TLV906xS)
- Extended temperature range: –40°C to 125°C
- Available in various micro size packages and industry-standard packages
Applications
The TLV9062IDSGR is suitable for a variety of applications where low-voltage operation, small footprint, and high capacitive load drive are essential. These include:
- Portable electronics and battery-powered devices
- Audio and video equipment
- Sensor conditioning and signal processing
- Medical devices and diagnostic equipment
- Industrial control systems and automation
Q & A
- What is the supply voltage range of the TLV9062IDSGR?
The supply voltage range is from 1.8V to 5.5V.
- What is the unity-gain bandwidth of the TLV9062IDSGR?
The unity-gain bandwidth is 10MHz.
- What is the input offset voltage of the TLV9062IDSGR?
The input offset voltage is ±0.3mV.
- Is the TLV9062IDSGR unity-gain stable?
Yes, the TLV9062IDSGR is unity-gain stable.
- What is the operating temperature range of the TLV9062IDSGR?
The operating temperature range is –40°C to 125°C.
- Does the TLV9062IDSGR have a shutdown mode?
Yes, the TLV906xS version includes a shutdown mode with typical current consumption less than 1µA.
- What types of packages are available for the TLV9062IDSGR?
The device is available in various micro size packages (e.g., X2SON, X2QFN) and industry-standard packages (e.g., SOIC, MSOP, SOT-23, TSSOP).
- What is the quiescent current of the TLV9062IDSGR?
The quiescent current is 538µA.
- Does the TLV9062IDSGR have internal RFI and EMI filters?
Yes, the device integrates internal RFI and EMI filters.
- How does the resistive open-loop output impedance benefit the TLV9062IDSGR?
The resistive open-loop output impedance makes it easier to stabilize the device with higher capacitive loads.
