Overview

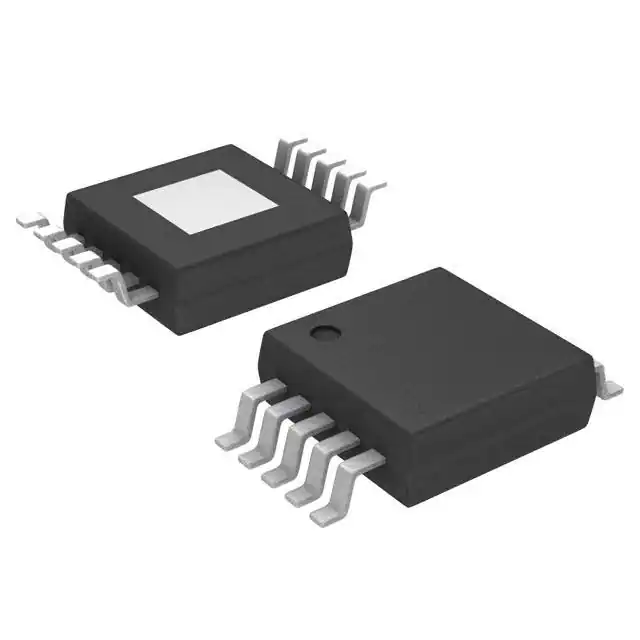

The TLV4113IDGQR is a dual high-output drive operational amplifier (op-amp) manufactured by Texas Instruments. Designed for applications requiring high output current and precision, this op-amp is part of the TLV4113 series. It features a shutdown mode, making it suitable for power-sensitive designs. The TLV4113IDGQR is housed in an MSOP-10 package and is widely used in industrial, automotive, and consumer electronics due to its robust performance and reliability.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 2 | - | Dual op-amp |
| Supply Voltage | 2.5 V to 6 V | V | Wide operating range |
| Bandwidth | 2.7 | MHz | - |
| Slew Rate | 1.57 | V/µs | - |
| Input Offset Voltage | 3.5 | mV | Max |
| Operating Temperature | -40 to +125 | °C | - |
| Input Bias Current | 50 | pA | - |
| Quiescent Current | 700 | µA | - |
| Shutdown Mode | Yes | - | Power-saving feature |
| Package | MSOP-10 | - | Surface mount |
Key Features
- High output drive capability for demanding applications.
- Shutdown mode for power efficiency in battery-operated devices.
- Low input offset voltage ensures precision in signal amplification.
- Wide operating temperature range for use in harsh environments.
- Compact MSOP-10 package for space-constrained designs.
Applications
The TLV4113IDGQR is ideal for a variety of applications, including industrial automation, automotive systems, and consumer electronics. Its high output drive capability makes it suitable for driving heavy loads, such as motors and LEDs. The shutdown mode is particularly useful in portable devices where power conservation is critical. Additionally, its precision and reliability make it a preferred choice for signal conditioning and sensor interfacing in industrial and automotive environments.
Q & A
1. What is the operating voltage range of the TLV4113IDGQR?
The TLV4113IDGQR operates within a voltage range of 2.5 V to 6 V.
2. Does the TLV4113IDGQR support shutdown mode?
Yes, the TLV4113IDGQR features a shutdown mode for power-saving applications.
3. What is the package type of the TLV4113IDGQR?
The TLV4113IDGQR is available in an MSOP-10 package.
4. What is the typical input offset voltage of the TLV4113IDGQR?
The typical input offset voltage is 3.5 mV.
5. Can the TLV4113IDGQR operate in high-temperature environments?
Yes, it can operate in temperatures ranging from -40°C to +125°C.
6. What is the bandwidth of the TLV4113IDGQR?
The bandwidth is 2.7 MHz.
7. Is the TLV4113IDGQR suitable for driving motors?
Yes, its high output drive capability makes it suitable for driving motors and other heavy loads.
8. What is the quiescent current of the TLV4113IDGQR?
The quiescent current is 700 µA.
9. Can the TLV4113IDGQR be used in battery-operated devices?
Yes, its shutdown mode and low power consumption make it ideal for battery-operated devices.
10. What are the key applications of the TLV4113IDGQR?
Key applications include industrial automation, automotive systems, and consumer electronics.
