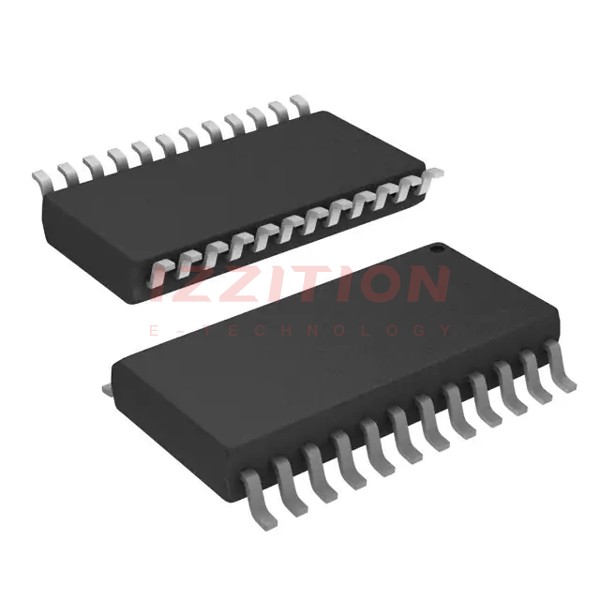

Texas Instruments TLC7225CDW

Manufacturer No:
TLC7225CDW
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
IC DAC 8BIT V-OUT 24SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TLC7225CDW is a high-performance, quad 8-bit digital-to-analog converter (DAC) produced by Texas Instruments. This product is designed for applications requiring precise analog signal generation and control. With its quad-channel architecture, the TLC7225CDW offers flexibility and efficiency, making it suitable for a wide range of industrial, automotive, and consumer electronics applications. Its unique selling points include low power consumption, high accuracy, and ease of integration, positioning it as a competitive choice in the DAC market.

Key Specifications

ParameterValueUnitNotes
Resolution8bits-
Number of Channels4-Quad DAC
Supply Voltage5 to 15VSingle or dual supply
Power Consumption2.5mWTypical
Output TypeVoltage-Unbuffered
InterfaceParallel--
Operating Temperature-40 to 85°C-
PackageSOIC-28-DW package

Key Features

  • Quad 8-bit DAC: Provides four independent channels for versatile signal generation.
  • Low Power Consumption: Ideal for battery-powered and energy-efficient applications.
  • High Accuracy: Ensures precise analog output for critical applications.
  • Wide Supply Voltage Range: Supports both single and dual supply configurations.
  • Parallel Interface: Simplifies integration with microcontrollers and digital systems.

Applications

The TLC7225CDW is widely used in various fields, including:

  • Industrial Automation: For process control and signal conditioning.
  • Automotive Electronics: In dashboard displays and sensor calibration.
  • Consumer Electronics: For audio processing and display adjustments.
  • Test and Measurement Equipment: To generate precise analog signals for testing purposes.

Q & A

1. What is the resolution of the TLC7225CDW?

The TLC7225CDW has an 8-bit resolution.

2. How many channels does the TLC7225CDW support?

It supports four independent channels.

3. What is the supply voltage range for this DAC?

The supply voltage ranges from 5V to 15V, supporting both single and dual supply configurations.

4. What is the typical power consumption of the TLC7225CDW?

The typical power consumption is 2.5mW.

5. What type of output does the TLC7225CDW provide?

It provides an unbuffered voltage output.

6. What interface does the TLC7225CDW use?

It uses a parallel interface.

7. What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

8. What package does the TLC7225CDW come in?

It comes in an SOIC-28 (DW) package.

9. Is the TLC7225CDW suitable for battery-powered applications?

Yes, its low power consumption makes it ideal for battery-powered applications.

10. Can the TLC7225CDW be used in automotive applications?

Yes, it is suitable for automotive electronics, such as dashboard displays and sensor calibration.

Product Attributes

Number of Bits:8
Number of D/A Converters:4
Settling Time:20µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:11.4V ~ 16.5V, -5.5V
Voltage - Supply, Digital:-
INL/DNL (LSB):±1 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C
Package / Case:24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:24-SOIC
Mounting Type:Surface Mount
