THS8136IPHPRQ1
  • Share:

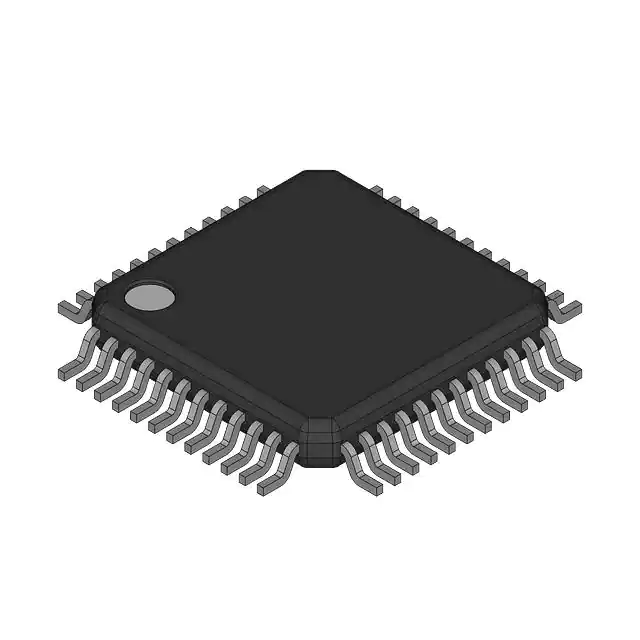

Texas Instruments THS8136IPHPRQ1

Manufacturer No:
THS8136IPHPRQ1
Manufacturer:
Texas Instruments
Package:
Bulk
Description:
DAC, PARALLEL, WORD INPUT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The THS8136IPHPRQ1 is a high-performance, triple 10-bit digital-to-analog converter (DAC) produced by Texas Instruments. This device is optimized for use in video and graphics applications, offering high-resolution image processing and a sampling rate of up to 180 MSPS. The THS8136 operates from 3.3-V analog and 1.8-V digital supply levels, making it suitable for a wide range of applications. It features current-steering DACs designed to produce standard video output levels when connected to a single-ended double-terminated 75-Ω coaxial cable. The device also supports bi-level sync and blanking level generation for both RGB and YPbPr color spaces, and it includes a generic DAC mode for applications not requiring sync insertion.

Key Specifications

Parameter Test Conditions Min Max Unit
DAC Resolution - 10 - - Bits
Sampling Rate - - 180 - MSPS
Analog Supply Voltage - 3.3 - - V
Digital Supply Voltage - 1.8 - - V
Integral Nonlinearity (INL) Static, best fit, RGB with sync insertion -1/1 - - LSB
Differential Nonlinearity (DNL) Static, best fit, generic mode -0.4/0.4 - - LSB
Power Supply Ripple Rejection Ratio (PSRR) f = DC - 38.5 - dB
Operating Supply Current (IAVDD) CLK = 180 MSPS, Generic mode 110 112 - mA
Operating Supply Current (IDVDD) CLK = 180 MSPS, Generic mode 31 36 - mA

Key Features

  • Triple 10-bit digital-to-analog converters optimized for video and graphics applications.
  • High-resolution image processing with a sampling rate of up to 180 MSPS.
  • Direct drive of double-terminated 75-Ω loads into standard video levels.
  • Bi-level sync and blanking level generation for RGB and YPbPr color spaces.
  • Internal voltage reference and low-power operation from 3.3-V analog and 1.8-V digital supply levels.
  • 1.8-V compatible digital inputs.
  • Qualified for automotive applications (AEC-Q100 Rev G).
  • Generic DAC mode for applications not requiring sync insertion.

Applications

  • Graphics and video generation.
  • High-resolution image processing.
  • Automotive display systems.
  • Professional video equipment.
  • Medical imaging devices.
  • Industrial display and control systems.

Q & A

  1. What is the sampling rate of the THS8136?

    The THS8136 operates at a sampling rate of up to 180 MSPS.

  2. What are the supply voltage requirements for the THS8136?

    The device operates from 3.3-V analog and 1.8-V digital supply levels.

  3. Does the THS8136 support bi-level sync generation?
  4. Is the THS8136 qualified for automotive applications?
  5. What is the DAC resolution of the THS8136?

    The THS8136 has a DAC resolution of 10 bits.

  6. Can the THS8136 operate in a generic DAC mode?
  7. What is the typical power supply ripple rejection ratio (PSRR) of the THS8136?

    The PSRR is typically 38.5 dB at DC.

  8. How does the THS8136 handle load termination?

    The THS8136 is designed to directly drive double-terminated 75-Ω loads into standard video levels.

  9. What is the data path latency of the THS8136?

    The data path latency is 7.5 clock cycles.

  10. Are the digital inputs of the THS8136 compatible with 1.8-V logic?

Product Attributes

Number of Bits:-
Number of D/A Converters:-
Settling Time:-
Output Type:-
Differential Output:-
Data Interface:-
Reference Type:-
Voltage - Supply, Analog:-
Voltage - Supply, Digital:-
INL/DNL (LSB):-
Architecture:-
Operating Temperature:-
Package / Case:-
Supplier Device Package:-
Mounting Type:-
0 Remaining View Similar

In Stock

$4.82
195

Please send RFQ , we will respond immediately.
