Overview
The THS6022IPWPRG4 is a high-speed, dual differential line driver manufactured by Texas Instruments. This integrated circuit is specifically designed to meet the high-peak voltage and current requirements of various digital subscriber line (DSL) applications, including asymmetrical DSL (ADSL), high-data-rate DSL (HDSL), and very high-data-rate DSL (VDSL). The device features two high-speed drivers capable of providing a minimum of 200-mA output current into a 50-Ω load, making it ideal for driving low-impedance lines with minimal distortion.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Drivers/Receivers | 2/0 |
| Output Current | Minimum 200 mA into 50 Ω load |
| Bandwidth | 210 MHz (-3 dB) at 50 Ω load |
| Slew Rate | 1900 V/μs (G = 5) |
| Third-Order Harmonic Distortion | -69 dB at f = 1 MHz, 50 Ω load, and VO(PP) = 20 V |
| Supply Voltage Range | ±5 V to ±15 V |
| Operating Temperature Range | -40°C to 85°C |

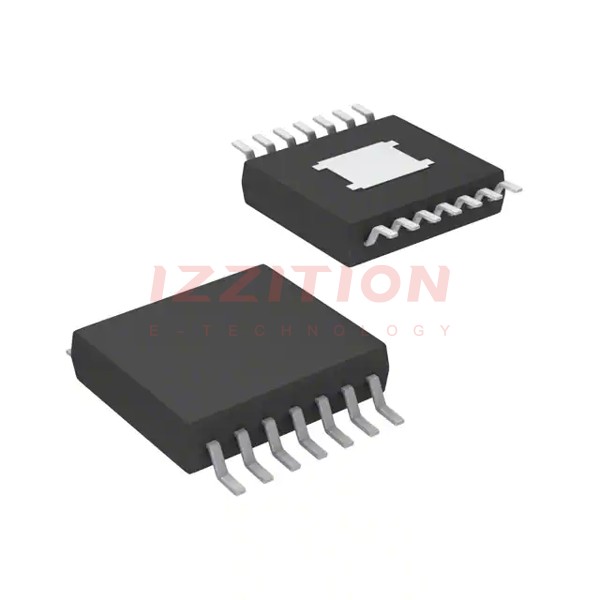

| Package Type | 14-HTSSOP (0.173", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
Key Features
- ADSL, HDSL, and VDSL Differential Line Driver
- High Speed with 210 MHz Bandwidth (-3 dB) at 50 Ω load
- Low Distortion: -69 dB Third-Order Harmonic Distortion at f = 1 MHz, 50 Ω load, and VO(PP) = 20 V
- Independent Power Supplies for Low Crosstalk
- Thermal-Shutdown and Short-Circuit Protection
- Wide Supply Range: ±5 V to ±15 V
- PowerPAD Package for Enhanced Thermal Performance
- Evaluation Module Available
Applications
The THS6022IPWPRG4 is primarily used in digital subscriber line (DSL) applications, including:
- Asymmetrical Digital Subscriber Line (ADSL)
- High-Data-Rate Digital Subscriber Line (HDSL)
- Very High-Data-Rate Digital Subscriber Line (VDSL)
Q & A
- What is the THS6022IPWPRG4 used for? The THS6022IPWPRG4 is used as a differential line driver in various DSL applications such as ADSL, HDSL, and VDSL.
- What is the output current capability of the THS6022IPWPRG4? The device can provide a minimum of 200 mA output current into a 50 Ω load.
- What is the bandwidth of the THS6022IPWPRG4? The bandwidth is 210 MHz (-3 dB) at a 50 Ω load.
- What is the slew rate of the THS6022IPWPRG4? The slew rate is 1900 V/μs (G = 5).
- What is the harmonic distortion of the THS6022IPWPRG4? The third-order harmonic distortion is -69 dB at f = 1 MHz, 50 Ω load, and VO(PP) = 20 V.
- What is the supply voltage range for the THS6022IPWPRG4? The supply voltage range is ±5 V to ±15 V.
- What is the operating temperature range for the THS6022IPWPRG4? The operating temperature range is -40°C to 85°C.
- What type of package does the THS6022IPWPRG4 come in? The device is packaged in a 14-HTSSOP (0.173", 4.40mm Width) Exposed Pad package.
- Does the THS6022IPWPRG4 have thermal protection? Yes, it features thermal-shutdown and short-circuit protection.
- Is an evaluation module available for the THS6022IPWPRG4? Yes, an evaluation module is available for this device.
