Overview
The THS4271DRBT is a high-speed operational amplifier manufactured by Texas Instruments. This component is designed for applications requiring ultra-low distortion and high-speed performance. It is part of the THS4271 series and is widely used in professional audio, medical imaging, and high-speed data acquisition systems. The THS4271DRBT is positioned as a premium solution for engineers seeking exceptional signal fidelity and rapid response times.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Manufacturer | Texas Instruments | - | - |
| Series | THS4271 | - | - |
| Channels | 1 | Channel | - |
| Gain Bandwidth Product | 350 | MHz | - |
| Slew Rate | 1 | kV/µs | - |
| Voltage Gain | 68 | dB | - |
| CMRR | 67 to 72 | dB | - |
| Input Bias Current | 15 | µA | - |
| Input Offset Voltage | 10 | mV | - |
| Supply Voltage (Max) | 15 | V | - |
| Supply Voltage (Min) | 5 | V | - |
| Operating Current | 22 | mA | - |
| Operating Temperature | -40 to +85 | °C | - |
| Package | SON-8 | - | - |
| Amplifier Type | Voltage Feedback | - | - |
| Input Voltage Noise Density | 3 | nV/√Hz | - |
| Power Dissipation | 2180 | mW | - |
| PSRR | 75 | dB | - |
Key Features
- Ultra-low distortion for high-fidelity signal processing.
- High-speed performance with a gain bandwidth product of 350 MHz.
- Single-channel design optimized for precision applications.
- Wide supply voltage range from 5V to 15V.
- Robust voltage feedback architecture ensures stability.
Applications
The THS4271DRBT is ideal for a variety of high-performance applications, including professional audio equipment, medical imaging systems, and high-speed data acquisition. Its ultra-low distortion makes it suitable for audio signal processing, while its high-speed capabilities are essential for medical imaging and data acquisition systems requiring rapid signal handling. Additionally, it is used in test and measurement equipment where precision and speed are critical.
Q & A
1. What is the gain bandwidth product of the THS4271DRBT?
The gain bandwidth product is 350 MHz.
2. What is the supply voltage range for this amplifier?
The supply voltage ranges from 5V to 15V.
3. What type of amplifier is the THS4271DRBT?
It is a voltage feedback amplifier.
4. What is the operating temperature range?
The operating temperature range is -40°C to +85°C.
5. What is the input voltage noise density?
The input voltage noise density is 3 nV/√Hz.
6. How many channels does this amplifier have?
It is a single-channel amplifier.
7. What is the typical application of the THS4271DRBT?
It is commonly used in professional audio, medical imaging, and high-speed data acquisition.
8. What is the slew rate of this amplifier?
The slew rate is 1 kV/µs.
9. Is the THS4271DRBT RoHS compliant?
Yes, it is RoHS compliant.

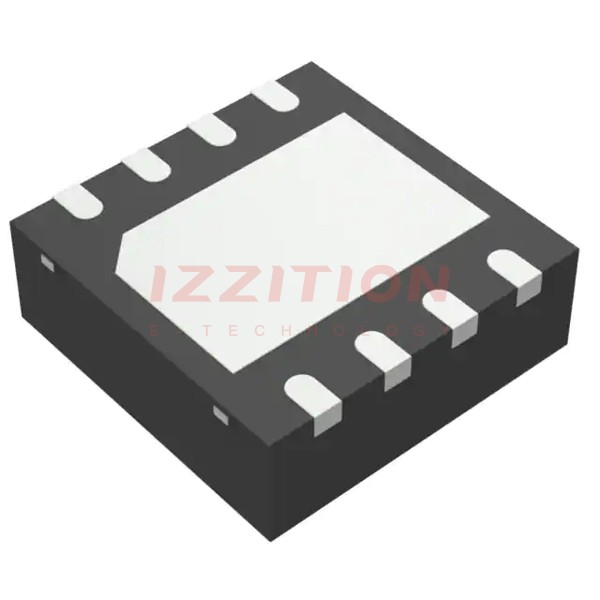

10. What is the package type of the THS4271DRBT?
It comes in an SON-8 package.
