Overview

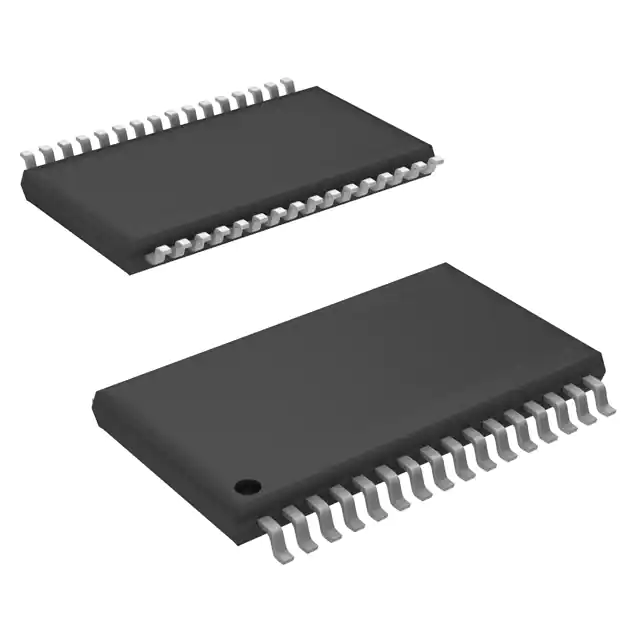

The THS1207IDA is a high-performance 12-bit, 6 MSPS (Mega Samples Per Second) analog-to-digital converter (ADC) manufactured by Texas Instruments. This CMOS-based, low-power ADC is designed for applications requiring high-speed data acquisition and precision. It features a multistage pipelined architecture with output error correction logic, ensuring no missing codes over the full operating temperature range. The THS1207IDA is particularly suited for radar, imaging, high-speed acquisition, and communication systems due to its speed, resolution, and bandwidth. It is available in a TSSOP-32 package and is RoHS compliant.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12 | bit | |
| Sampling Rate | 6 | MSPS | |
| Input Channels | 4 | Simultaneous sampling | |
| Operating Temperature | -40 to 85 | °C | Industrial grade |
| Power Supply | Single | 3.3V or 5V | |
| Package | TSSOP-32 | ||
| RoHS Compliance | Yes |
Key Features
- Simultaneous sampling of four single-ended or two differential signals.
- Multistage pipelined architecture with output error correction logic.
- Internal reference voltages (1.5V and 3.5V) with option for external reference.
- Low power consumption suitable for portable and battery-operated devices.
- No missing codes over the full operating temperature range.
Applications
The THS1207IDA is widely used in various high-speed data acquisition systems. Its primary applications include radar systems, imaging devices, high-speed data acquisition systems, and communication equipment. The ADC's ability to handle multiple input channels simultaneously makes it ideal for complex signal processing tasks in industrial and automotive electronics. Additionally, its low power consumption and robust performance in extreme temperatures make it suitable for portable and rugged applications.
Q & A
1. What is the resolution of the THS1207IDA?
The THS1207IDA has a resolution of 12 bits.
2. What is the sampling rate of the THS1207IDA?
The sampling rate is 6 MSPS.
3. How many input channels does the THS1207IDA support?
It supports four input channels with simultaneous sampling.
4. What is the operating temperature range of the THS1207IDA?
The operating temperature range is from -40°C to 85°C.
5. Is the THS1207IDA RoHS compliant?
Yes, it is RoHS compliant.
6. What package does the THS1207IDA come in?
It comes in a TSSOP-32 package.
7. Can the THS1207IDA operate on a single power supply?
Yes, it can operate on a single 3.3V or 5V power supply.
8. What are the internal reference voltages of the THS1207IDA?
The internal reference voltages are 1.5V and 3.5V.
9. What is the significance of the multistage pipelined architecture in the THS1207IDA?
The multistage pipelined architecture ensures high-speed data conversion with output error correction logic, providing no missing codes over the full operating temperature range.
10. In what applications is the THS1207IDA commonly used?
It is commonly used in radar systems, imaging devices, high-speed data acquisition systems, and communication equipment.
