Overview

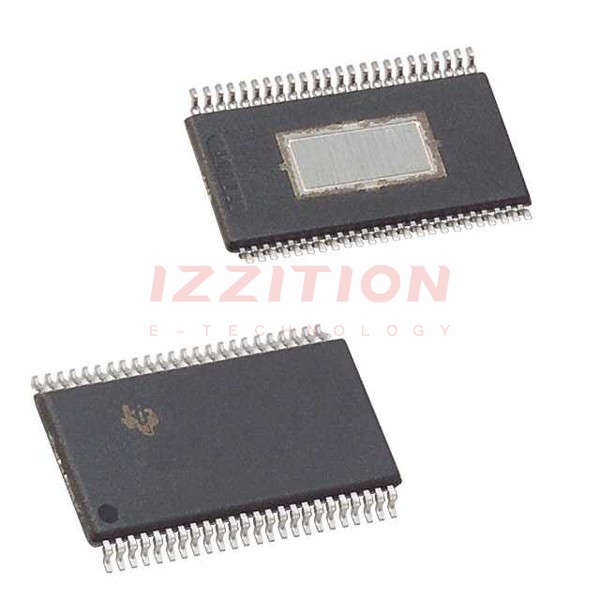

The TAS5753MDDCAR is a high-performance digital input Class-D audio amplifier produced by Texas Instruments. This component is designed to deliver robust audio output with advanced features such as equalization and high-pass filtering. It is packaged in a 48-pin HTSSOP (DCA) package, making it suitable for a variety of audio applications requiring compact and efficient solutions.
Key Specifications
| Specification | Value |
|---|---|
| Output Power | 20 W (stereo), 39 W (mono) |
| Input Voltage Range | 4.5 V to 26.4 V |
| Package Type | HTSSOP-48-EP-6.1mm |
| Pins | 48 |
| Operating Temperature Range | -40°C to 85°C |
| Compliance | ROHS compliant |
Key Features
- Digital input Class-D audio amplifier
- Equalization (AGL) and high-pass filtering capabilities
- Open-loop configuration for flexibility in design
- High efficiency and low heat dissipation
- Compact HTSSOP package for space-saving designs
Applications
The TAS5753MDDCAR is suitable for various audio applications, including:
- Home audio systems
- Automotive audio systems
- Professional audio equipment
- Consumer electronics such as soundbars and speakers
- Industrial audio systems requiring high reliability and efficiency
Q & A
- What is the output power of the TAS5753MDDCAR? The output power is 20 W in stereo mode and 39 W in mono mode.
- What is the input voltage range for the TAS5753MDDCAR? The input voltage range is from 4.5 V to 26.4 V.
- What package type does the TAS5753MDDCAR use? It uses a 48-pin HTSSOP (DCA) package.
- Is the TAS5753MDDCAR ROHS compliant? Yes, it is ROHS compliant.
- What are the key features of the TAS5753MDDCAR? Key features include digital input, Class-D operation, equalization, and high-pass filtering.
- What are some common applications for the TAS5753MDDCAR? Common applications include home audio systems, automotive audio systems, professional audio equipment, and consumer electronics.
- What is the operating temperature range of the TAS5753MDDCAR? The operating temperature range is from -40°C to 85°C.
- Where can I purchase the TAS5753MDDCAR? You can purchase it from various electronic component distributors such as Digi-Key, Mouser, and Abacus Technologies.
- What is the significance of the HTSSOP package? The HTSSOP package is compact and helps in space-saving designs.
- Does the TAS5753MDDCAR support open-loop configuration? Yes, it supports open-loop configuration for flexibility in design.
