Overview

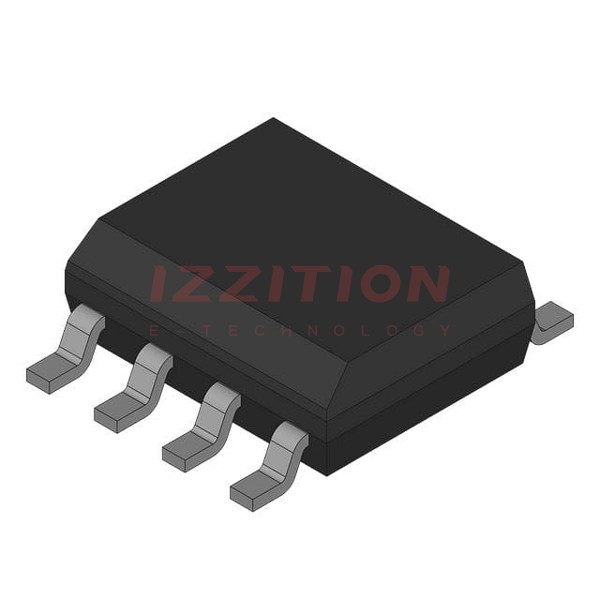

The SN75453BPS is a dual peripheral driver manufactured by Texas Instruments. This component is designed for high-current, high-voltage applications, making it suitable for driving inductive loads such as relays, solenoids, and stepper motors. It is housed in an SOP-8 package, ensuring compactness and ease of integration into various electronic systems. The SN75453BPS is widely used in industrial automation, automotive electronics, and consumer electronics due to its robust performance and reliability.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Manufacturer | Texas Instruments | - | - |
| Category | FET Driver | - | - |
| Package | SOP-8 | - | - |
| Output Voltage | 30 | V | Maximum |
| Peak Output Current | 500 | mA | Maximum |
| Number of Drivers | 2 | - | - |
| Input Compatibility | TTL | - | - |
| Delay Time | 18 | ns | Typical |
| Operating Temperature | 0 to 70 | °C | - |
Key Features
- High current and voltage capability for driving inductive loads.
- Dual-channel design for versatile applications.
- TTL-compatible inputs for easy integration with digital circuits.
- Compact SOP-8 package for space-constrained designs.
- Robust performance in industrial and automotive environments.
Applications
The SN75453BPS is ideal for a wide range of applications, including:
- Industrial Automation: Driving relays, solenoids, and stepper motors in automated systems.
- Automotive Electronics: Controlling actuators and other high-current loads in vehicles.
- Consumer Electronics: Powering small motors and other peripherals in household devices.
Q & A
1. What is the maximum output voltage of the SN75453BPS?
The maximum output voltage is 30V.
2. What is the peak output current of this component?
The peak output current is 500mA.
3. Is the SN75453BPS compatible with TTL inputs?
Yes, it is compatible with TTL inputs.
4. What package does the SN75453BPS come in?
It is housed in an SOP-8 package.
5. What is the typical delay time of the SN75453BPS?
The typical delay time is 18ns.
6. What is the operating temperature range of the SN75453BPS?
The operating temperature range is 0°C to 70°C.
7. How many drivers are included in the SN75453BPS?
It includes 2 drivers.
8. What type of loads is the SN75453BPS designed to drive?
It is designed to drive inductive loads such as relays, solenoids, and stepper motors.
9. Can the SN75453BPS be used in automotive applications?
Yes, it is suitable for automotive electronics.
10. What are the key advantages of the SN75453BPS?
Its key advantages include high current and voltage capability, dual-channel design, TTL compatibility, and robust performance in harsh environments.
