Overview

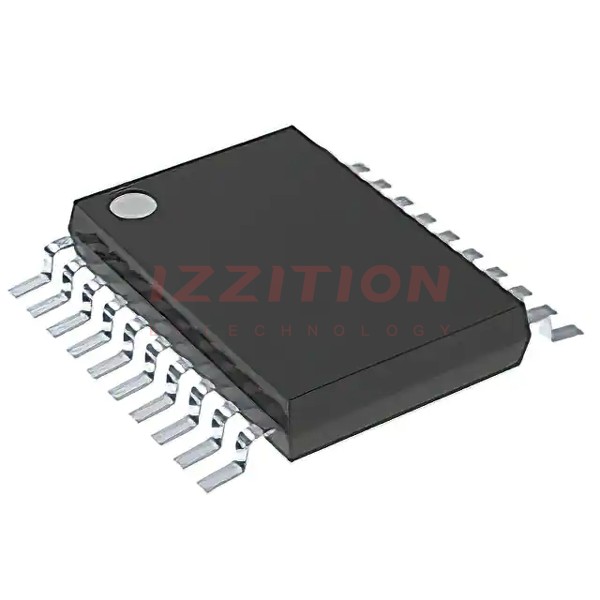

The SN74LVC541APW is an octal buffer/driver produced by Texas Instruments, designed for operation within a voltage range of 1.65 V to 3.6 V. This device is ideal for driving bus lines or buffering memory address registers. It features inputs and outputs on opposite sides of the package, facilitating easier printed circuit board layout. The SN74LVC541APW is also capable of mixed-mode signal operation, allowing it to act as a translator in systems with both 3.3-V and 5-V components.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Operating Voltage Range | 1.65 V to 3.6 V | V |
| Input Voltage Range | 0 V to 5.5 V | V |
| Maximum Propagation Delay at 3.3 V | 5.1 ns | ns |
| Typical Output Ground Bounce at VCC = 3.3 V, TA = 25°C | < 0.8 V | V |
| Typical Output Undershoot at VCC = 3.3 V, TA = 25°C | > 2 V | V |
| High-Level Output Current at VCC = 3 V | -24 mA | mA |
| Low-Level Output Current at VCC = 3 V | 24 mA | mA |
| Operating Temperature Range | -40°C to 125°C | °C |
| Package Type | TSSOP-20 |
Key Features
- Operates from 1.65 V to 3.6 V
- Inputs accept voltages up to 5.5 V
- Supports mixed-mode signal operation (5-V input/output voltage with 3.3-V VCC)
- Partial-power-down mode operation using Ioff
- Latch-up performance exceeds 250 mA per JESD 17
- ESD protection exceeds JESD 22 (2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model)
- 3-state control gate with active-low inputs
Applications
The SN74LVC541APW is suitable for various applications, including:
- Driving bus lines in digital systems
- Buffering memory address registers
- Translating signals in mixed 3.3-V/5-V system environments
- Partial-power-down applications where power conservation is critical
