Overview

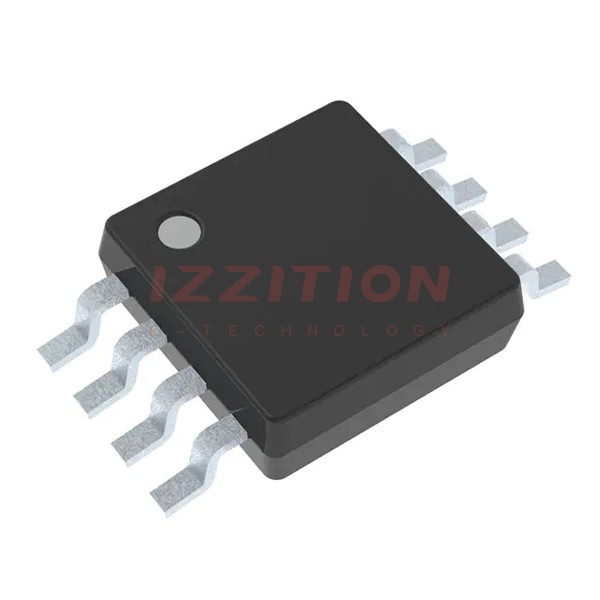

The SN74LVC2G86DCUTG4 is a dual 2-input exclusive-OR gate produced by Texas Instruments. This device operates within a wide voltage range of 1.65 V to 5.5 V, making it versatile for various applications. It is designed using Texas Instruments' NanoFree™ package technology, which enhances packaging efficiency by using the die as the package. The SN74LVC2G86 performs the Boolean function Y = A ⊕ B, making it suitable for logic operations in digital circuits.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC Supply Voltage Range | 1.65 | 5.5 | V | |
| VI Input Voltage Range | -0.5 | 6.5 | V | |
| VO Output Voltage Range | -0.5 | VCC + 0.5 | V | |
| IOH High-Level Output Current | -100 μA | -4 mA | -32 mA | mA |
| IOL Low-Level Output Current | 100 μA | 4 mA | 32 mA | mA |
| tpd Propagation Delay (A or B to Y) | 1.6 ns | 4.7 ns | 11.0 ns | ns |
| TA Operating Free-Air Temperature Range | -40°C | 125°C | °C | |
| ICC Power Consumption | 10 μA | μA |
Key Features
- Operates from 1.65 V to 5.5 V supply voltage range, supporting 5-V VCC operation.
- Low power consumption with a maximum ICC of 10 μA.
- High output drive capability with ±24 mA at 3.3 V.
- Supports live insertion, partial-power-down mode, and back drive protection through Ioff circuitry.
- Latch-up performance exceeds 100 mA per JESD 78, Class II.
- Typical VOLP (output ground bounce) < 0.8 V and VOHV (output VOH undershoot) > 2 V at VCC = 3.3 V, TA = 25°C.
- Available in SSOP, VSSOP, and DSBGA packages.
Applications
The SN74LVC2G86DCUTG4 is suitable for various digital logic applications, including:
- Boolean logic operations in digital circuits.
- True/complement logic elements.
- General-purpose logic in industrial, automotive, and consumer electronics.
- Applications requiring low power consumption and high output drive capability.
Q & A
- What is the operating voltage range of the SN74LVC2G86DCUTG4?
The SN74LVC2G86DCUTG4 operates from 1.65 V to 5.5 V.
- What is the maximum propagation delay for the SN74LVC2G86DCUTG4?
The maximum propagation delay is approximately 11.0 ns at VCC = 1.8 V to 5 V.
- What are the package options available for the SN74LVC2G86DCUTG4?
The device is available in SSOP, VSSOP, and DSBGA packages.
- What is the power consumption of the SN74LVC2G86DCUTG4?
The maximum power consumption is 10 μA.
- Does the SN74LVC2G86DCUTG4 support live insertion and partial-power-down mode?
Yes, it supports live insertion, partial-power-down mode, and back drive protection through Ioff circuitry.
- What is the output drive capability of the SN74LVC2G86DCUTG4?
The device has a high output drive capability of ±24 mA at 3.3 V.
- What are the typical output ground bounce and VOH undershoot values?
Typical VOLP is < 0.8 V and VOHV is > 2 V at VCC = 3.3 V, TA = 25°C.
- What is the operating temperature range of the SN74LVC2G86DCUTG4?
The operating temperature range is from -40°C to 125°C.
- Does the SN74LVC2G86DCUTG4 have built-in ESD protection?
The device has limited built-in ESD protection; proper handling and storage are recommended to prevent electrostatic damage.
- What are some common applications of the SN74LVC2G86DCUTG4?
Common applications include Boolean logic operations, true/complement logic elements, and general-purpose logic in various electronics.
