Overview

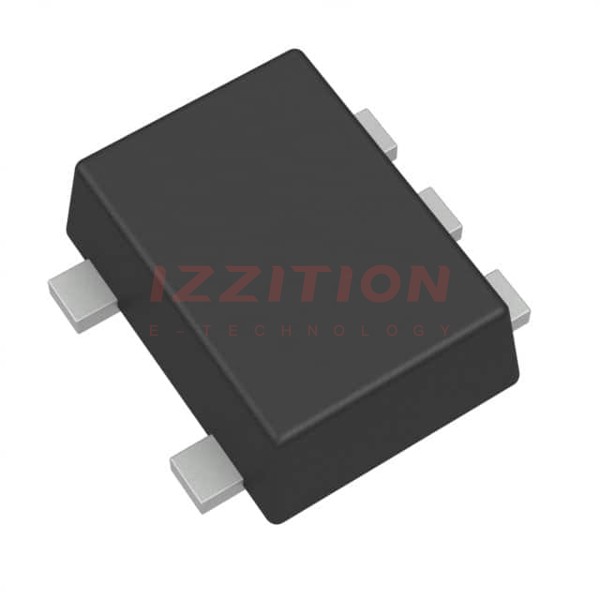

The SN74LVC1G08DRLRG4, manufactured by Texas Instruments, is a single 2-input positive-AND gate integrated circuit. This device is part of the LVC family, known for its low voltage operation and high-speed performance. It is designed for use in a wide range of digital logic applications, offering a compact and efficient solution for logic gate implementation. The SN74LVC1G08DRLRG4 is particularly suited for portable and battery-powered devices due to its low power consumption and small footprint.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 1.65 to 5.5 | V | |
| Input Voltage | 0 to 5.5 | V | |
| Output Voltage | 0 to 5.5 | V | |
| Operating Temperature | -40 to 125 | °C | |
| Propagation Delay | 3.7 | ns | at 3.3V |
| Package | SOT-553 |
Key Features
- Low power consumption, ideal for battery-operated devices.
- High-speed operation with a typical propagation delay of 3.7 ns at 3.3V.
- Wide operating voltage range from 1.65V to 5.5V.
- Small package size (SOT-553) for space-constrained applications.
- Robust design with ESD protection exceeding 2000 V.
Applications
The SN74LVC1G08DRLRG4 is widely used in various digital logic applications. It is commonly found in portable electronics, such as smartphones and tablets, where low power consumption and compact size are crucial. Additionally, it is used in industrial control systems, automotive electronics, and communication devices, providing reliable logic gate functionality in these demanding environments.
Q & A
What is the operating voltage range of the SN74LVC1G08DRLRG4?
The operating voltage range is from 1.65V to 5.5V.
What is the typical propagation delay of this device?
The typical propagation delay is 3.7 ns at 3.3V.
What package does the SN74LVC1G08DRLRG4 come in?
It comes in a SOT-553 package.
Is the SN74LVC1G08DRLRG4 suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered devices.
What are the typical applications of this device?
Typical applications include portable electronics, industrial control systems, automotive electronics, and communication devices.
Does the SN74LVC1G08DRLRG4 have ESD protection?
Yes, it has ESD protection exceeding 2000 V.
What is the maximum input voltage for this device?
The maximum input voltage is 5.5V.
What is the operating temperature range?
The operating temperature range is from -40°C to 125°C.
Can this device be used in automotive applications?
Yes, it is suitable for automotive electronics.
What is the output voltage range of the SN74LVC1G08DRLRG4?
The output voltage range is from 0V to 5.5V.
