Overview

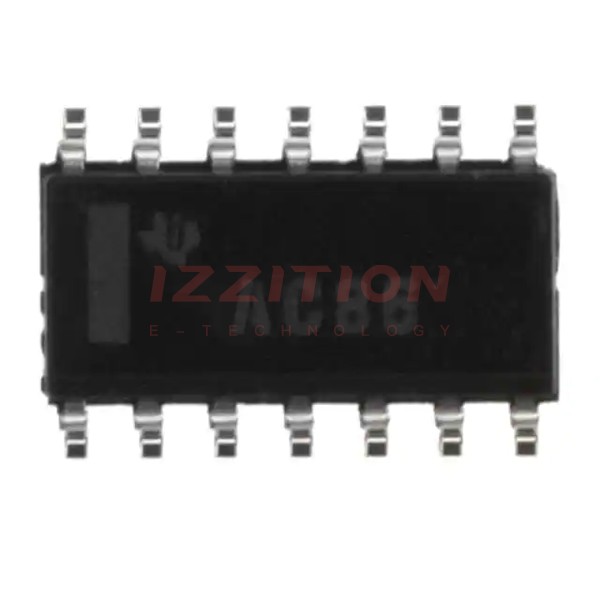

The SN74LVC08ADBRG4 is a quadruple 2-input positive-AND gate produced by Texas Instruments. It belongs to the LVC (Low-Voltage CMOS) logic family and is designed for applications requiring low power consumption and high-speed operation. This component is widely used in digital systems for logical operations and signal processing. Its market positioning targets designers and engineers in industries such as industrial automation, consumer electronics, and automotive systems. The SN74LVC08ADBRG4 stands out for its robust performance, compatibility with a wide range of supply voltages, and compact packaging, making it a competitive choice in the logic gate market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Function | AND | - | Quadruple 2-input |
| Gate Count | 4 | - | - |
| Input Lines | 8 | - | - |
| Output Lines | 4 | - | - |
| Low-Level Output Current | 24 | mA | - |
| High-Level Output Current | -24 | mA | - |
| Propagation Delay Time | 4.1 | ns | - |
| Supply Voltage (Min) | 1.65 | V | - |
| Supply Voltage (Max) | 3.6 | V | - |
| Operating Temperature (Min) | -40 | °C | - |
| Operating Temperature (Max) | +125 | °C | - |
| Package | SSOP-14 | - | - |
Key Features
- Quadruple 2-input AND gate functionality for versatile logical operations.
- Low-voltage CMOS technology ensures minimal power consumption.
- Wide operating voltage range (1.65V to 3.6V) for compatibility with various systems.
- High-speed performance with a propagation delay of 4.1 ns.
- Robust design suitable for industrial and automotive applications.
Applications
The SN74LVC08ADBRG4 is commonly used in digital systems for logical operations, signal processing, and data manipulation. Its applications span across industries such as industrial automation, where it is used in control systems and signal conditioning; consumer electronics, for user interface and data processing; and automotive electronics, for vehicle control modules and sensor interfacing. Its compact size and low power consumption make it ideal for portable devices and battery-powered systems.
Q & A
What is the operating voltage range of the SN74LVC08ADBRG4?
The operating voltage range is from 1.65V to 3.6V.
What is the propagation delay of this component?
The propagation delay is 4.1 ns.
Is the SN74LVC08ADBRG4 suitable for automotive applications?
Yes, it is designed to meet the requirements of automotive systems.
What is the package type of this component?
It is available in an SSOP-14 package.
Can this component be used in battery-powered devices?
Yes, its low power consumption makes it suitable for battery-powered applications.
What is the maximum operating temperature?
The maximum operating temperature is +125°C.
How many gates does the SN74LVC08ADBRG4 contain?
It contains four 2-input AND gates.
What is the output current capability?
It supports a low-level output current of 24 mA and a high-level output current of -24 mA.
Is this component RoHS compliant?
Yes, it is RoHS compliant.
What are the typical applications of this component?
Typical applications include industrial automation, consumer electronics, and automotive systems.
