Overview

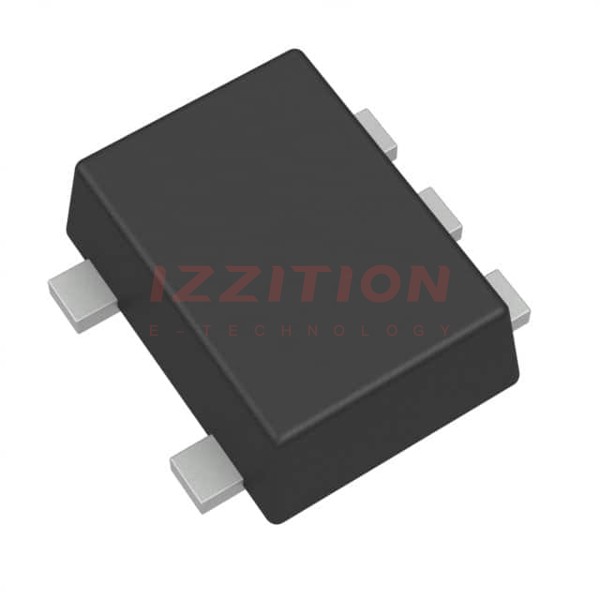

The SN74AUC1G08DRLRG4 is a single 2-input positive-AND gate produced by Texas Instruments. This device is operational over a wide voltage range of 0.8-V to 2.7-V VCC, but it is specifically designed for operation between 1.65-V and 1.95-V VCC. The SN74AUC1G08 performs the Boolean AND function in positive logic and is packaged in a SOT-5X3 (DRL) package with 5 pins. This component is part of the 74AUC series, known for its ultra-high-speed operation and low power consumption, making it suitable for a variety of applications requiring high performance and reliability.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package Type | SOT-5X3 (DRL) | |
| Pins | 5 | |
| Operating Temperature Range | -40°C to 85°C | °C |
| Voltage Supply Range | 0.8 V to 2.7 V | V |
| Max Propagation Delay @ 1.8 V | 2.4 ns | ns |
| Output Drive @ 1.8 V | ±8 mA | mA |
| Low Power Consumption (Max ICC) | 10 µA | µA |
| ESD Protection | 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model | V |
Key Features
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22: 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
- Available in the Texas Instruments NanoFree™ Package
- Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
- Supports Partial-Power-Down Mode and Back Drive Protection
- Sub-1-V Operable
- Low Power Consumption, 10-µA Max ICC
- ±8-mA Output Drive at 1.8 V
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-Ray Player and Home Theater
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Q & A
- What is the voltage supply range of the SN74AUC1G08DRLRG4?
The voltage supply range is from 0.8 V to 2.7 V, but it is specifically designed for operation between 1.65 V and 1.95 V VCC.
- What is the maximum propagation delay at 1.8 V for the SN74AUC1G08DRLRG4?
The maximum propagation delay at 1.8 V is 2.4 ns.
- What type of package does the SN74AUC1G08DRLRG4 come in?
The device is packaged in a SOT-5X3 (DRL) package with 5 pins.
- What is the operating temperature range of the SN74AUC1G08DRLRG4?
The operating temperature range is from -40°C to 85°C.
- Does the SN74AUC1G08DRLRG4 support partial-power-down mode?
Yes, it supports partial-power-down mode and back drive protection.
- What is the ESD protection level of the SN74AUC1G08DRLRG4?
The device has ESD protection exceeding JESD 22: 2000-V Human-Body Model, 200-V Machine Model, and 1000-V Charged-Device Model.
- What are some common applications of the SN74AUC1G08DRLRG4?
Common applications include AV receivers, audio docks, Blu-Ray players, embedded PCs, MP3 players/recorders, PDAs, and various other digital devices.
- Is the SN74AUC1G08DRLRG4 RoHS compliant?
Yes, the device is lead-free and RoHS compliant.
- What is the output drive capability of the SN74AUC1G08DRLRG4 at 1.8 V?
The output drive capability is ±8 mA at 1.8 V.
- What is the maximum power consumption of the SN74AUC1G08DRLRG4?
The maximum power consumption is 10 µA.
