Overview

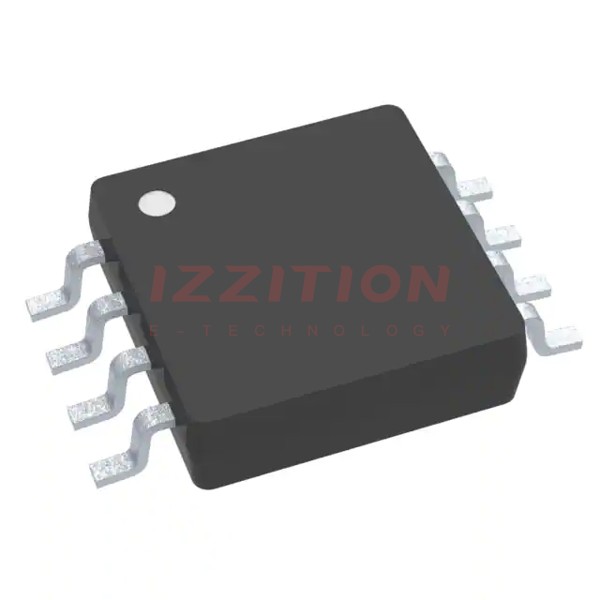

The SN65LVDS9638DGKG4 is a high-speed differential line driver produced by Texas Instruments. This device is part of the SNx5LVDSxx family, which implements the electrical characteristics of low-voltage differential signaling (LVDS) as specified by the ANSI TIA/EIA-644A standard. It operates from a single 3.3-V supply and is designed to drive 100-Ω transmission lines, making it suitable for high-speed data transmission applications.
The device features dual-channel operation, with each channel capable of delivering differential output signals with a nominal magnitude of 340 mV. It is characterized by low power consumption, high switching speeds, and robust ESD protection, making it ideal for various high-reliability and high-speed applications.
Key Specifications
Parameter | Test Conditions | Unit | Min | Typical | Max |
---|---|---|---|---|---|
VOD (Differential Output Voltage Magnitude) | RL = 100 Ω | mV | 247 | 340 | 454 |
ΔVOD (Change in Differential Output Voltage Magnitude) | RL = 100 Ω | mV | -50 | 50 | 50 |
VOC(SS) (Steady-state Common-mode Output Voltage) | V | 1.125 | 1.2 | 1.375 | |
ICC (Supply Current) | VI = 0.8 V or 2 V, Enabled, No load | mA | 4.7 | 8 | 13 |
tPLH (Propagation Delay Time, Low-to-High-Level Output) | RL = 100 Ω, CL = 10 pF | ns | 0.5 | 1.4 | 2 |
tr (Differential Output Signal Rise Time) | 20% to 80% | ns | 0.4 | 0.5 | 0.6 |
tf (Differential Output Signal Fall Time) | 80% to 20% | ns | 0.4 | 0.5 | 0.6 |
Key Features
- Meets or exceeds the requirements of ANSI TIA/EIA-644A standard for LVDS.
- Low-voltage differential signaling with a typical output voltage of 340 mV and 100-Ω load.
- Typical output voltage rise and fall times of 500 ps (400 Mbps).
- Typical propagation delay times of 1.7 ns.
- Operates from a single 3.3-V supply.
- Low power dissipation: 25 mW typical per driver at 200 MHz.
- Driver at high-impedance when disabled or with VCC = 0.
- Bus-terminal ESD protection exceeds 8 kV.
- Low-voltage TTL (LVTTL) logic input levels.
- PIN compatible with AM26LS31, MC3487, and μA9638.
- Cold sparing for space and high-reliability applications requiring redundancy.
Applications
- Wireless infrastructure.
- Telecom infrastructure.
- Printers.
- High-speed data transmission systems.
- High-reliability and space applications.
Q & A
- What is the typical differential output voltage of the SN65LVDS9638DGKG4?
The typical differential output voltage is 340 mV into a 100-Ω load.
- What is the operating supply voltage range for the SN65LVDS9638DGKG4?
The device operates from a single supply that is nominally 3.3 V, but can range from 3 V to 3.6 V.
- What is the maximum data rate supported by the SN65LVDS9638DGKG4?
The device supports a data rate of up to 1500 Mbps.
- What type of input logic does the SN65LVDS9638DGKG4 use?
The device uses Low-Voltage TTL (LVTTL) logic input levels.
- What is the typical propagation delay time for the SN65LVDS9638DGKG4?
The typical propagation delay time is 1.4 ns.
- Does the SN65LVDS9638DGKG4 have ESD protection?
Yes, the device has bus-terminal ESD protection that exceeds 8 kV.
- What is the power dissipation of the SN65LVDS9638DGKG4 at 200 MHz?
The typical power dissipation is 25 mW per driver at 200 MHz.
- Is the SN65LVDS9638DGKG4 RoHS compliant?
Yes, the device is RoHS compliant.
- What are the common applications of the SN65LVDS9638DGKG4?
The device is commonly used in wireless infrastructure, telecom infrastructure, printers, and high-speed data transmission systems.
- Does the SN65LVDS9638DGKG4 support cold sparing?
Yes, the device supports cold sparing for space and high-reliability applications requiring redundancy.
