Overview

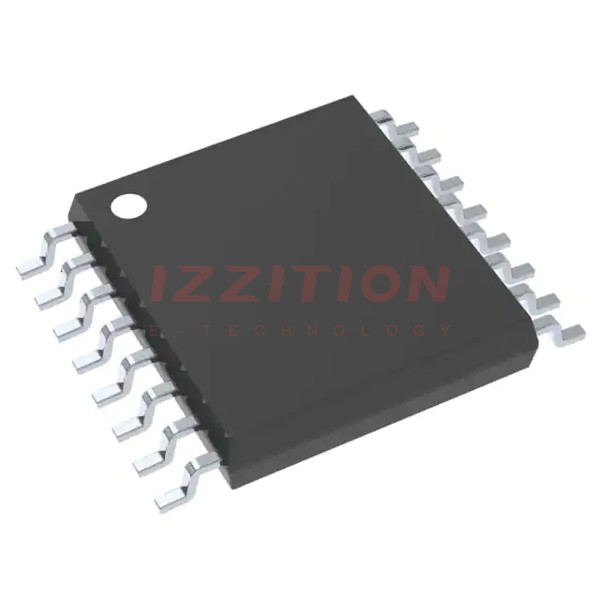

The SN65LVDS348PWR is a high-speed, quadruple differential receiver produced by Texas Instruments. This component is designed to operate within a wide common-mode input voltage range, making it suitable for receiving TIA/EIA-644 signals with up to 3-V of ground noise or various differential and single-ended logic levels. The device is packaged in a 16-pin TSSOP (Thin Shrink Small Outline Package) to match the industry-standard footprint of the DS90LV048. It features a flow-through architecture, which simplifies board layout and reduces crosstalk between receivers.
Key Specifications
| Specification | Value |
|---|---|
| Package | 16-pin TSSOP (PW) |
| Operating Temperature Range | -40°C to 85°C |
| Data Rate | Up to 560 Mbps |
| Common-Mode Input Voltage Range | -4 V to 5 V |
| Supply Voltage | 3 V to 3.6 V |
| Receiver Hysteresis | 50 mV |
| Human-Body Model (HBM) ESD Protection | ±15 kV |
| Integrated Termination Resistor (LVDT versions) | 110 Ω |
Key Features
- Meets or exceeds the requirements of ANSI TIA/EIA-644A standard
- Flow-through architecture to ease board layout and reduce crosstalk
- Active failsafe circuit that provides a high-level output within 600 ns after loss of the input signal
- Precise control of differential input voltage thresholds with 50 mV of input-voltage hysteresis for improved noise rejection
- Accepts LVPECL, PECL, LVECL, ECL, CMOS, and LVCMOS levels without level shifting circuitry
- Integrated 110-Ω line termination resistor in LVDT versions to reduce board space and improve signal integrity
Applications
- Logic level translator
- Point-to-point baseband data transmission over controlled impedance media (e.g., printed-circuit board traces, backplanes, or cables)
- ECL/PECL-to-LVTTL conversion
- Wireless base stations
- Central office or PABX switches
Q & A
- What is the maximum data rate of the SN65LVDS348PWR?
The maximum data rate is up to 560 Mbps. - What is the common-mode input voltage range of the SN65LVDS348PWR?
The common-mode input voltage range is -4 V to 5 V. - What type of package does the SN65LVDS348PWR come in?
The device is packaged in a 16-pin TSSOP (Thin Shrink Small Outline Package). - What is the operating temperature range of the SN65LVDS348PWR?
The operating temperature range is -40°C to 85°C. - Does the SN65LVDS348PWR have integrated termination resistors?
Yes, the LVDT versions of the SN65LVDS348PWR include an integrated 110-Ω line termination resistor. - What is the purpose of the failsafe circuit in the SN65LVDS348PWR?
The failsafe circuit provides a high-level output within 600 ns after loss of the input signal to prevent noise from being received as valid data. - What types of logic levels can the SN65LVDS348PWR accept without level shifting circuitry?
The device can accept LVPECL, PECL, LVECL, ECL, CMOS, and LVCMOS levels without level shifting circuitry. - What is the ESD protection rating of the SN65LVDS348PWR?
The device has an ESD protection rating of ±15 kV human-body model (HBM). - What are some common applications of the SN65LVDS348PWR?
Common applications include logic level translation, point-to-point baseband data transmission, ECL/PECL-to-LVTTL conversion, wireless base stations, and central office or PABX switches. - How does the flow-through architecture of the SN65LVDS348PWR benefit board design?
The flow-through architecture simplifies board layout and reduces crosstalk between receivers by placing all inputs on one side and outputs on the other.
