Overview
The SN65HVD1473DGSR is a 3.3V full-duplex RS-485 transceiver produced by Texas Instruments. This electronic component is designed for robust communication in industrial and automotive applications, offering high-speed data transmission and enhanced electrostatic discharge (ESD) protection. Its market positioning targets engineers and developers working on reliable communication systems in harsh environments. The SN65HVD1473DGSR stands out for its ±16kV IEC ESD protection and low power consumption, making it a competitive choice for modern communication networks.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 3.3 | V | |
| Data Rate | Up to 25 | Mbps | |
| ESD Protection | ±16 | kV | IEC Standard |
| Operating Temperature | -40 to 85 | °C | |

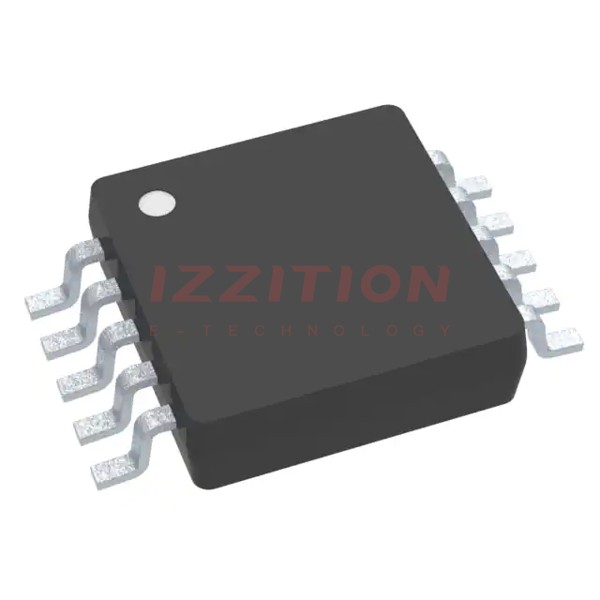

| Package | VSSOP-10 |
Key Features
- Full-duplex RS-485 communication for simultaneous bidirectional data transfer.
- ±16kV IEC ESD protection ensures reliability in harsh environments.
- Low power consumption ideal for energy-efficient designs.
- Wide operating temperature range (-40°C to 85°C) for industrial and automotive applications.
- Compact VSSOP-10 package for space-constrained designs.
Applications
The SN65HVD1473DGSR is widely used in industrial automation, automotive electronics, and communication networks. In industrial automation, it enables reliable data transmission in noisy environments. In automotive systems, it supports robust communication for vehicle control and diagnostics. Additionally, it is suitable for building automation, where low power consumption and high reliability are critical.
Q & A
1. What is the operating voltage of the SN65HVD1473DGSR?
The operating voltage is 3.3V.
2. What is the maximum data rate supported by this transceiver?
It supports data rates up to 25 Mbps.
3. Does the SN65HVD1473DGSR provide ESD protection?
Yes, it offers ±16kV IEC ESD protection.
4. What is the operating temperature range?
The operating temperature range is -40°C to 85°C.
5. What package does this transceiver use?
It comes in a VSSOP-10 package.
6. Is the SN65HVD1473DGSR suitable for automotive applications?
Yes, it is designed for automotive and industrial environments.
7. Can this transceiver be used in full-duplex communication?
Yes, it supports full-duplex communication.
8. What makes this transceiver energy-efficient?
Its low power consumption makes it energy-efficient.
9. Is the SN65HVD1473DGSR compatible with 5V systems?
No, it is designed for 3.3V systems.
10. Where can I find the datasheet for this component?
The datasheet is available on the Texas Instruments official website.
