Overview
The OPA462IDDAR is a high-performance operational amplifier produced by Texas Instruments. This device is characterized by its high voltage rating of 180 V and high current drive capability of up to 45 mA. It is unity-gain stable and features a wide bandwidth of 6.5 MHz along with a high slew rate of 25 V/µs, making it suitable for a variety of high-voltage and high-current applications.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | 180 V |
| Bandwidth | 6.5 MHz |
| Slew Rate | 25 V/µs |
| Current Drive | Up to 45 mA |

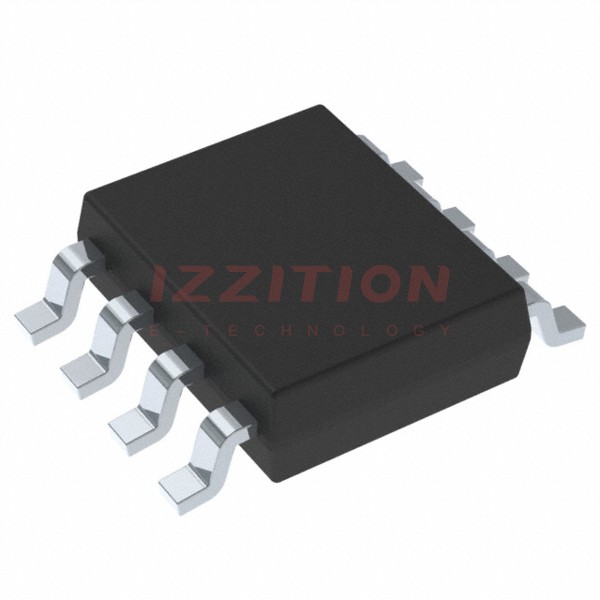

| Package Type | HSOIC (DDA) with 8 pins |
| Stability | Unity-gain stable |
Key Features
- High voltage rating of 180 V, making it suitable for high-voltage applications.
- High current drive capability of up to 45 mA.
- Wide bandwidth of 6.5 MHz and high slew rate of 25 V/µs for fast signal processing.
- Unity-gain stable, ensuring reliable operation in various configurations.
- Available in HSOIC (DDA) package with 8 pins, offering a compact solution.
Applications
The OPA462IDDAR is ideal for various high-voltage and high-current applications, including but not limited to:
- Industrial control systems.
- Power supply monitoring and control.
- High-voltage instrumentation.
- Automotive systems requiring high voltage and current drive.
- Medical equipment that demands high reliability and performance.
Q & A
- What is the voltage rating of the OPA462IDDAR?
The OPA462IDDAR has a voltage rating of 180 V. - What is the bandwidth of the OPA462IDDAR?
The bandwidth of the OPA462IDDAR is 6.5 MHz. - What is the slew rate of the OPA462IDDAR?
The slew rate of the OPA462IDDAR is 25 V/µs. - How much current can the OPA462IDDAR drive?
The OPA462IDDAR can drive up to 45 mA of current. - In what package is the OPA462IDDAR available?
The OPA462IDDAR is available in an HSOIC (DDA) package with 8 pins. - Is the OPA462IDDAR unity-gain stable?
Yes, the OPA462IDDAR is unity-gain stable. - What are some typical applications of the OPA462IDDAR?
The OPA462IDDAR is used in industrial control systems, power supply monitoring and control, high-voltage instrumentation, automotive systems, and medical equipment. - Where can I find detailed specifications for the OPA462IDDAR?
Detailed specifications can be found on the Texas Instruments website or through datasheets available from various electronics suppliers. - How does the high slew rate benefit the performance of the OPA462IDDAR?
The high slew rate of 25 V/µs allows for fast signal processing and response, which is crucial in high-speed and high-accuracy applications. - What makes the OPA462IDDAR suitable for high-voltage applications?
The OPA462IDDAR is suitable for high-voltage applications due to its 180 V voltage rating and high current drive capability.
