Overview
The OPA454AIDDA is a high-voltage, high-current operational amplifier produced by Texas Instruments. It is designed for applications requiring a wide power supply range and robust current drive capabilities. This model is particularly suitable for industrial and automotive applications where reliability and performance under extreme conditions are critical. The OPA454AIDDA offers a unique combination of high voltage operation up to 100V and a current drive of up to 50mA, making it a versatile choice for power management and signal conditioning tasks.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Power Supply Range | ±5V to ±50V or 10V to 100V | V | Single or dual supply |
| Output Current | ±50 | mA | |
| Gain Bandwidth Product | 2.5 | MHz | |
| Slew Rate | 13 | V/µs | |
| Input Bias Current | 1.4 | pA | |
| Operating Temperature | -40 to +85 | °C | |
| Package | 8-Pin SO | With exposed metal pad for heat dissipation |
Key Features
- Wide power supply range for versatile application setups.
- High output load drive capability, suitable for demanding environments.
- Independent output disable feature for power saving and load protection.
- Robust against overtemperature and current overload conditions.
- Designed for extended industrial temperature range, ensuring reliability in harsh conditions.
Applications
The OPA454AIDDA is extensively used in various sectors including industrial automation, automotive electronics, and test equipment. Its ability to handle high voltage and current makes it ideal for driving sensors, actuators, and other high-power components. Additionally, its precision and stability are beneficial in audio amplifiers and servo control systems, where signal integrity is paramount.
Q & A
What is the maximum voltage the OPA454AIDDA can handle?
The OPA454AIDDA can handle up to 100V in single supply mode or ±50V in dual supply mode.
Can the OPA454AIDDA operate in high-temperature environments?
Yes, it is designed to operate in temperatures ranging from -40°C to +85°C.
What is the significance of the independent output disable feature?
This feature allows the output to be turned off without affecting the input signal, which helps in saving power and protecting the load.
Is the OPA454AIDDA suitable for audio applications?
Yes, its high precision and wide output swing make it suitable for audio amplifiers.
What type of package does the OPA454AIDDA come in?

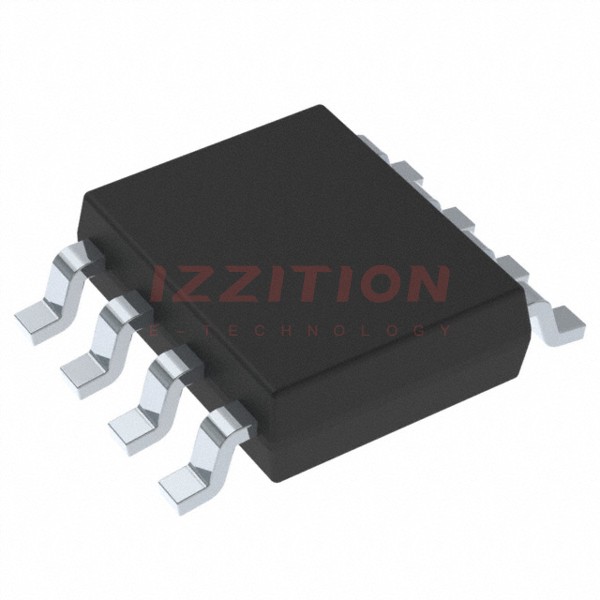

It comes in an 8-Pin SO package with an exposed metal pad for enhanced heat dissipation.
How does the OPA454AIDDA protect against overtemperature?
It includes internal protection mechanisms that safeguard the device against overtemperature conditions.
What is the input bias current of the OPA454AIDDA?
The input bias current is typically 1.4 pA.
Can the OPA454AIDDA be used in servo control systems?
Yes, its stability and precision are beneficial for servo control applications.
What is the slew rate of the OPA454AIDDA?
The slew rate is 13 V/µs.
Is the OPA454AIDDA RoHS compliant?
Yes, it is RoHS compliant, making it suitable for use in environmentally sensitive applications.
