Overview
The OPA4343UA is a high-performance operational amplifier (op-amp) manufactured by Texas Instruments. This model is part of the OPA4343 series, designed for applications requiring low power consumption and rail-to-rail input/output performance. It is particularly suited for portable and battery-powered devices, offering a balance of precision and efficiency. The OPA4343UA is ideal for engineers and designers working on signal conditioning, sensor amplification, and other analog circuit designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Manufacturer | Texas Instruments | - | - |
| Product Category | Operational Amplifiers | - | - |
| Number of Channels | 4 | Channel | - |
| Supply Voltage (Max) | 5 | V | - |
| Supply Voltage (Min) | 2.7 | V | - |
| Gain Bandwidth Product | 5.5 | MHz | - |
| Slew Rate | 6 | V/µs | - |
| Input Bias Current | 10 | pA | - |
| Input Offset Voltage | 8 | mV | - |
| Operating Temperature Range | -40 to +85 | °C | - |

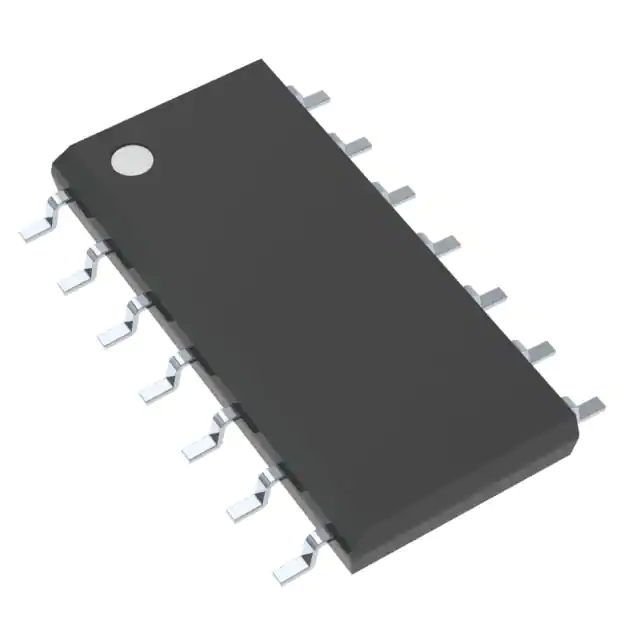

| Package | SOIC-14 | - | - |
Key Features
- Rail-to-rail input and output for maximum dynamic range.
- Low power consumption with a supply current of 850 µA.
- High gain bandwidth product of 5.5 MHz for wideband applications.
- Low input bias current of 10 pA for precision applications.
- Operates from a single supply voltage ranging from 2.7 V to 5 V.
Applications
The OPA4343UA is widely used in various applications, including portable medical devices, sensor signal conditioning, and battery-powered instrumentation. Its rail-to-rail capabilities make it suitable for systems requiring high dynamic range, such as data acquisition systems and audio processing. Additionally, its low power consumption and precision make it ideal for industrial control systems and consumer electronics.
Q & A
1. What is the supply voltage range for the OPA4343UA?
The OPA4343UA operates from a single supply voltage ranging from 2.7 V to 5 V.
2. Does the OPA4343UA support rail-to-rail operation?
Yes, the OPA4343UA supports rail-to-rail input and output operation.
3. What is the gain bandwidth product of the OPA4343UA?
The gain bandwidth product is 5.5 MHz.
4. What is the typical input bias current of the OPA4343UA?
The typical input bias current is 10 pA.
5. Is the OPA4343UA suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered applications.
6. What is the operating temperature range of the OPA4343UA?
The operating temperature range is -40 °C to +85 °C.
7. How many channels does the OPA4343UA have?
The OPA4343UA has 4 channels.
8. What is the package type of the OPA4343UA?
The package type is SOIC-14.
9. Can the OPA4343UA be used in industrial control systems?
Yes, its precision and low power consumption make it suitable for industrial control systems.
10. What is the slew rate of the OPA4343UA?
The slew rate is 6 V/µs.
