Overview

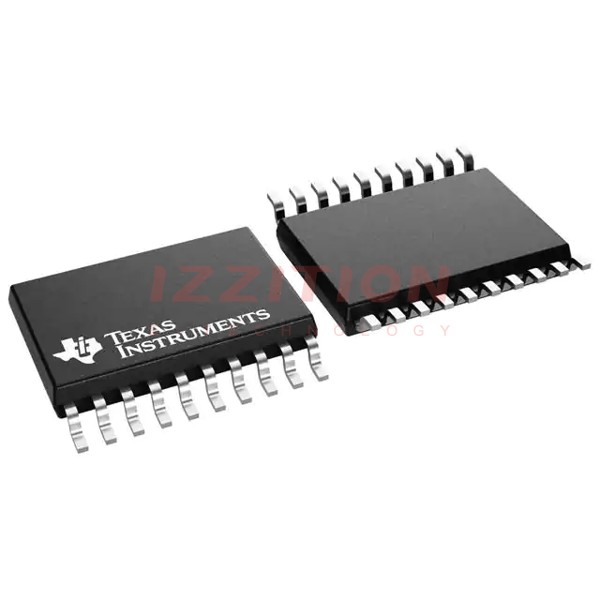

The MSP430G2553IPW8RQ1 is a 16-bit microcontroller produced by Texas Instruments, designed for low-power and cost-sensitive applications. This model belongs to the MSP430G2xx series, which is widely recognized for its ultra-low power consumption and high integration. It is ideal for applications in embedded systems, portable devices, and IoT solutions. The MSP430G2553IPW8RQ1 stands out for its robust performance, compact size, and energy efficiency, making it a competitive choice for developers seeking reliable and scalable microcontroller solutions.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Architecture | 16-bit RISC | - | MSP430 CPU |
| Operating Frequency | 16 | MHz | Max clock speed |
| Flash Memory | 16 | KB | Program memory |
| RAM | 512 | B | Data memory |
| GPIO Pins | 16 | - | Configurable I/O |
| ADC Channels | 8 | - | 10-bit resolution |
| Operating Voltage | 1.8 to 3.6 | V | Wide range |
| Power Consumption | 0.1 (active), 0.5 (standby) | µA | Ultra-low power |
| Package | TSSOP-8 | - | Compact form factor |
| Temperature Range | -40 to 85 | °C | Industrial grade |
Key Features
- Ultra-Low Power Consumption: Ideal for battery-powered and energy-efficient applications.
- High Integration: Combines a 16-bit CPU, memory, and peripherals in a compact package.
- 10-bit ADC: Provides precise analog signal conversion for sensor applications.
- Flexible GPIO: Configurable I/O pins support diverse interfacing needs.
- Robust Performance: Operates reliably across a wide voltage and temperature range.
Applications
The MSP430G2553IPW8RQ1 is widely used in various fields, including:
- Portable Devices: Such as medical devices, fitness trackers, and handheld instruments.
- IoT Solutions: For smart sensors, edge devices, and home automation systems.
- Industrial Automation: In control systems, monitoring devices, and data acquisition modules.
- Consumer Electronics: Including remote controls, toys, and small appliances.
Q & A
1. What is the operating voltage range of the MSP430G2553IPW8RQ1?
The operating voltage range is 1.8V to 3.6V.
2. How much flash memory does this microcontroller have?
It has 16 KB of flash memory.
3. What is the maximum clock speed of the MSP430G2553IPW8RQ1?
The maximum clock speed is 16 MHz.
4. How many GPIO pins are available?
There are 16 configurable GPIO pins.
5. Does this microcontroller support analog-to-digital conversion?
Yes, it includes an 8-channel 10-bit ADC.
6. What is the power consumption in active mode?
The power consumption is 0.1 µA in active mode.
7. What package does the MSP430G2553IPW8RQ1 come in?
It comes in a TSSOP-8 package.
8. Is this microcontroller suitable for industrial applications?
Yes, it operates in the temperature range of -40°C to 85°C, making it suitable for industrial use.
9. Can it be used in IoT devices?
Yes, its low power consumption and compact size make it ideal for IoT applications.
10. What is the RAM size of this microcontroller?
It has 512 B of RAM.
