Overview
The MSP430G2433IRHB32T is a low-power, high-performance 16-bit microcontroller from Texas Instruments. It belongs to the MSP430G2xx series, which is designed for cost-sensitive applications requiring minimal power consumption and compact form factors. This model is particularly suitable for battery-powered devices, portable instruments, and embedded systems. Its key selling points include ultra-low power consumption, integrated peripherals, and a robust development ecosystem, making it a competitive choice for developers targeting energy-efficient applications.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Architecture | 16-bit RISC | - | MSP430 CPU |
| Operating Frequency | 16 | MHz | Max clock speed |
| Flash Memory | 8 | KB | Program memory |
| RAM | 256 | Bytes | Data memory |
| GPIO Pins | 16 | - | Configurable I/O |
| Operating Voltage | 1.8 to 3.6 | V | Wide range |
| Power Consumption | 0.1 (active), 0.5 (standby) | µA | Ultra-low power |

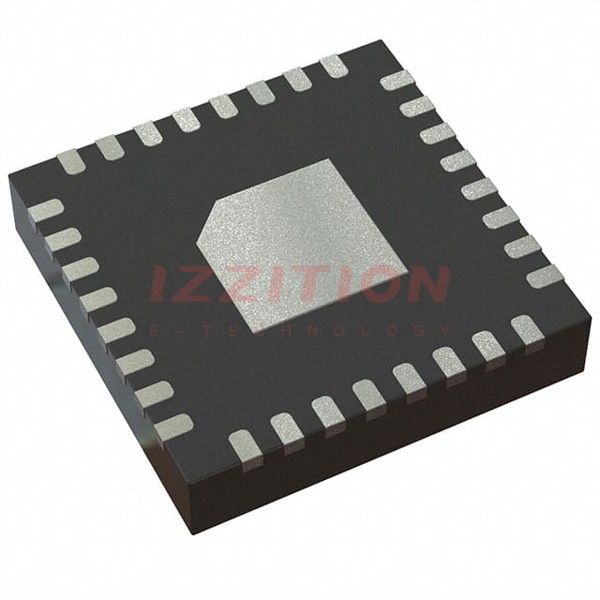

| Package | 32-VQFN | - | Compact form factor |
| Temperature Range | -40 to 85 | °C | Industrial grade |
| Peripherals | Timer, ADC, UART, I2C | - | Integrated |
Key Features
- Ultra-Low Power Consumption: Ideal for battery-powered and energy-harvesting applications.
- Integrated Peripherals: Includes timers, analog-to-digital converters (ADC), and communication interfaces (UART, I2C).
- Compact Form Factor: 32-pin VQFN package for space-constrained designs.
- Robust Development Ecosystem: Supported by TI's MSP430 development tools and software libraries.
- Wide Operating Voltage Range: Operates from 1.8V to 3.6V, enhancing flexibility in power supply design.
Applications
The MSP430G2433IRHB32T is widely used in various fields, including:
- Portable Devices: Such as wearable health monitors and handheld instruments.
- Industrial Automation: For sensor interfacing and control systems.
- Consumer Electronics: Including remote controls and smart home devices.
- Automotive Electronics: For low-power control modules and sensors.
- IoT Applications: Enabling energy-efficient edge devices in IoT networks.
Q & A
1. What is the operating voltage range of the MSP430G2433IRHB32T?
The operating voltage range is 1.8V to 3.6V.
2. How much flash memory does this microcontroller have?
It has 8 KB of flash memory.
3. What is the maximum clock speed?
The maximum clock speed is 16 MHz.
4. What peripherals are integrated into this microcontroller?
Integrated peripherals include timers, ADC, UART, and I2C.
5. Is this microcontroller suitable for battery-powered devices?
Yes, its ultra-low power consumption makes it ideal for battery-powered applications.
6. What is the package type of the MSP430G2433IRHB32T?
It comes in a 32-pin VQFN package.
7. What is the temperature range for operation?
It operates in a temperature range of -40°C to 85°C.
8. Does it support communication protocols?
Yes, it supports UART and I2C communication protocols.
9. What is the power consumption in standby mode?
The power consumption in standby mode is 0.5 µA.
10. Is there a development ecosystem available for this microcontroller?
Yes, Texas Instruments provides a robust development ecosystem, including tools and software libraries.
