Overview

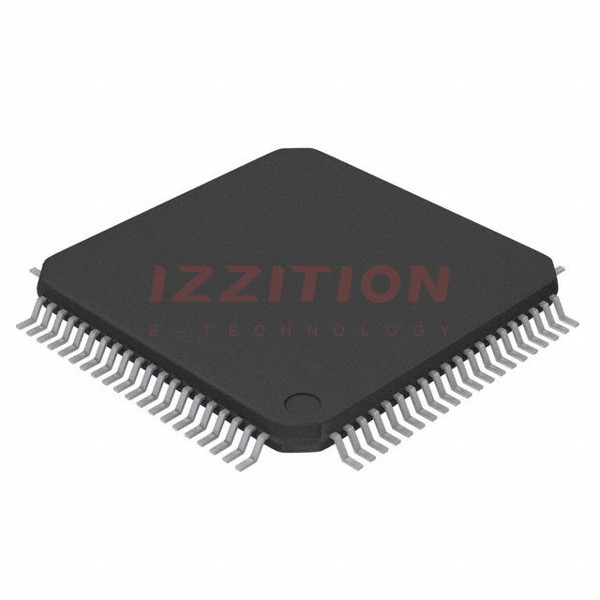

The MSP430FR6989IPNR is a highly efficient, ultra-low-power microcontroller from Texas Instruments, designed for applications requiring robust performance and energy efficiency. Part of the MSP430FRxx FRAM microcontroller family, this model integrates Ferroelectric Random Access Memory (FRAM), offering fast write speeds, high endurance, and low power consumption. The MSP430FR6989IPNR is ideal for applications in industrial, consumer, and automotive electronics, targeting developers who need reliable, low-power solutions with advanced processing capabilities.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Processor | MSP430 CPUXV2 | - | 16-bit RISC architecture |
| Operating Frequency | Up to 16 | MHz | - |
| Program Memory Size | 128 | KB | FRAM technology |
| RAM Size | 2 | KB | - |
| Number of I/O Pins | 48 | - | - |
| Operating Voltage | 1.8 to 3.6 | V | - |
| Operating Temperature | -40 to 85 | °C | - |
| Package | LQFP-80 | - | - |
| Special Features | Low-power modes, FRAM, ADC, LCD driver | - | - |
Key Features
- Ultra-Low Power Consumption: Optimized for battery-powered applications with multiple low-power modes.
- FRAM Technology: Combines the speed of SRAM with the non-volatility of flash memory, offering high endurance and fast write speeds.
- Integrated Peripherals: Includes a 12-bit ADC, LCD driver, and multiple communication interfaces (UART, SPI, I2C).
- Robust Processing: 16-bit RISC architecture ensures efficient performance for complex tasks.
- Enhanced Security: Built-in memory protection and tamper detection features.
Applications
The MSP430FR6989IPNR is widely used in various industries due to its versatility and efficiency. In industrial automation, it powers sensors and control systems with its low-power operation and robust performance. In consumer electronics, it is ideal for smart devices and wearables. The microcontroller also finds applications in automotive electronics, such as dashboard displays and vehicle control systems, thanks to its reliability and advanced features.
Q & A
1. What is FRAM, and why is it beneficial?
FRAM (Ferroelectric Random Access Memory) offers fast write speeds, high endurance, and low power consumption, making it ideal for applications requiring frequent data updates.
2. What is the operating voltage range?
The operating voltage range is 1.8V to 3.6V, suitable for low-power applications.
3. How many I/O pins are available?
The MSP430FR6989IPNR has 48 I/O pins for versatile connectivity.
4. What is the maximum operating frequency?
The microcontroller operates at up to 16 MHz.
5. Does it support low-power modes?
Yes, it includes multiple low-power modes to optimize energy efficiency.
6. What communication interfaces are supported?
It supports UART, SPI, and I2C for versatile communication.
7. Is it suitable for automotive applications?
Yes, its reliability and advanced features make it ideal for automotive electronics.
8. What is the package type?
It comes in an LQFP-80 package.
9. What is the program memory size?
The program memory size is 128 KB, utilizing FRAM technology.
10. Does it include an ADC?
Yes, it features a 12-bit ADC for precise analog signal processing.
