Overview

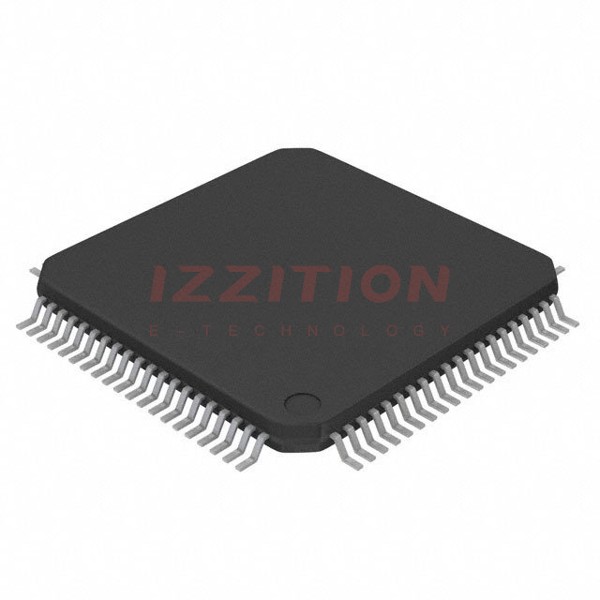

The MSP430F5325IPNR is a 16-bit microcontroller (MCU) produced by Texas Instruments. It is part of the MSP430 family and is known for its low power consumption and high performance. This MCU operates at a frequency of up to 25 MHz and features a robust set of peripherals, making it suitable for a wide range of applications, including industrial, medical, and consumer electronics.
Key Specifications
| Parameter | Specification |
|---|---|
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | Up to 25 MHz |
| Flash Memory | 64 KB |
| SRAM | 6 KB |
| ADC Resolution | 12-bit |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Package Type | LQFP (PN) with 80 pins |
| Additional Features | Comparator, DMA, HW multiplier |
Key Features
- Low power consumption, making it ideal for battery-powered devices.
- High performance with a 25 MHz clock speed.
- Integrated 12-bit ADC for precise analog-to-digital conversion.
- On-chip comparator and DMA for efficient data transfer.
- Hardware multiplier for accelerated mathematical operations.
- Multiple communication interfaces including I2C, SPI, UART/USART, and more.
Applications
The MSP430F5325IPNR is versatile and can be used in various applications such as:
- Industrial automation and control systems.
- Medical devices requiring low power and high precision.
- Consumer electronics, including smart home devices and wearables.
- Automotive systems, particularly those requiring low power and robust performance.
Q & A
- What is the maximum operating frequency of the MSP430F5325IPNR?
The maximum operating frequency is up to 25 MHz. - How much flash memory does the MSP430F5325IPNR have?
The MSP430F5325IPNR has 64 KB of flash memory. - What is the resolution of the ADC on the MSP430F5325IPNR?
The ADC resolution is 12-bit. - What types of communication interfaces are available on the MSP430F5325IPNR?
The MCU supports I2C, IrDA, LINbus, SCI, SPI, and UART/USART. - What is the package type of the MSP430F5325IPNR?
The package type is LQFP (PN) with 80 pins. - Does the MSP430F5325IPNR have a hardware multiplier?
Yes, it includes a hardware multiplier for accelerated mathematical operations. - What is the SRAM capacity of the MSP430F5325IPNR?
The SRAM capacity is 6 KB. - Is the MSP430F5325IPNR suitable for battery-powered devices?
Yes, it is known for its low power consumption, making it ideal for battery-powered devices. - What additional peripherals does the MSP430F5325IPNR have?
The MCU includes a comparator and DMA. - Where can I find more detailed information about the MSP430F5325IPNR?
You can find detailed information on the Texas Instruments official website and through distributors like Digi-Key and Mouser.
