Overview

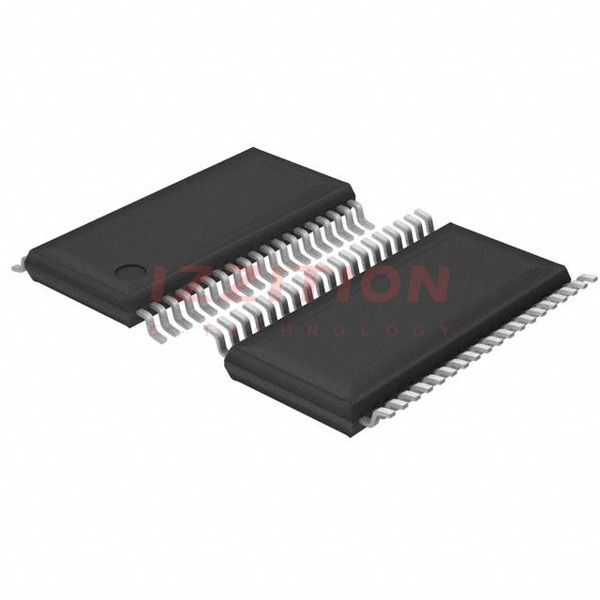

The MSP430F5171IDAR is a mixed-signal microcontroller (MCU) produced by Texas Instruments. It is part of the MSP430 family, known for its low power consumption and high performance. This MCU operates at a frequency of up to 25 MHz and is packaged in a 38-pin TSSOP (DA) package. It is designed to meet the needs of various embedded systems applications requiring a balance of processing power, memory, and peripheral functionality.
Key Specifications
| Parameter | Value |
|---|---|
| Operating Frequency | Up to 25 MHz |
| Flash Memory | 32 KB |
| SRAM | 2 KB |
| Number of Programmable I/O | 27 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal and External Options |
| Package Type | TSSOP (DA) - 38 pins |
Key Features
- Low Power Consumption: Optimized for battery-powered devices and energy-efficient applications.
- High Resolution Timer: 16-bit timer for precise timing and control.
- DMA (Direct Memory Access): Enhances data transfer efficiency.
- Comparator: Integrated comparator for analog signal processing.
- Multiple Communication Interfaces: Includes SPI, UART, and other peripherals for versatile communication.
Applications
The MSP430F5171IDAR is suitable for a wide range of applications, including:
- Industrial Automation: For control and monitoring systems.
- Medical Devices: For portable and battery-powered medical equipment.
- Consumer Electronics: For devices requiring low power and high performance.
- Automotive Systems: For various automotive control and monitoring applications.
- IoT Devices: For Internet of Things applications requiring low power and efficient processing.
Q & A
- What is the maximum operating frequency of the MSP430F5171IDAR?
The maximum operating frequency is up to 25 MHz. - How much flash memory does the MSP430F5171IDAR have?
The MSP430F5171IDAR has 32 KB of flash memory. - What type of package does the MSP430F5171IDAR come in?
The MSP430F5171IDAR comes in a 38-pin TSSOP (DA) package. - Does the MSP430F5171IDAR have DMA capability?
Yes, it has Direct Memory Access (DMA) capability. - How many programmable I/O pins does the MSP430F5171IDAR have?
The MSP430F5171IDAR has 27 programmable I/O pins. - What is the SRAM size of the MSP430F5171IDAR?
The SRAM size is 2 KB. - Does the MSP430F5171IDAR have a built-in comparator?
Yes, it has a built-in comparator. - How many SPI channels does the MSP430F5171IDAR support?
The MSP430F5171IDAR supports 2 SPI channels. - What is the number of timers/counters available on the MSP430F5171IDAR?
The MSP430F5171IDAR has 9 timers/counters. - Is the MSP430F5171IDAR suitable for low power applications?
Yes, it is optimized for low power consumption and is suitable for battery-powered devices.
