Overview
The MSP430F2132TRTVR is a 16-bit ultra-low-power microcontroller from Texas Instruments, designed for applications requiring high performance and minimal energy consumption. This model is part of the MSP430 family, known for its versatility and efficiency in embedded systems. It targets industries such as industrial automation, consumer electronics, and automotive electronics, offering a balance of processing power and energy efficiency.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Processor | MSP430 | - | 16-bit RISC architecture |
| Flash Memory | 8KB | KB | Program memory |
| RAM | 512B | B | Data memory |
| Operating Voltage | 1.8 to 3.6 | V | Wide range for flexibility |
| Speed | 16MHz | MHz | High processing capability |

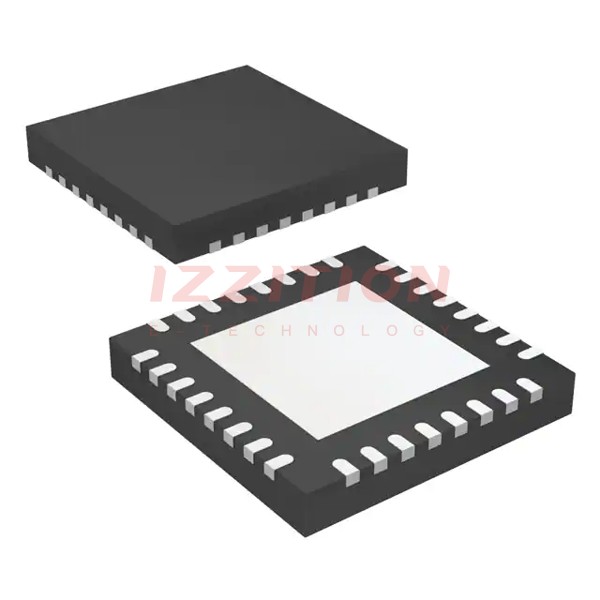

| Package | 32-QFN | - | Compact form factor |
Key Features
- Ultra-low-power consumption for battery-operated applications.
- Integrated analog and digital peripherals for versatile functionality.
- Robust 16-bit RISC CPU for efficient processing.
- Flexible clock system to optimize power usage.
Applications
The MSP430F2132TRTVR is widely used in various fields such as industrial automation, where it controls machinery and processes efficiently. In consumer electronics, it powers devices like smart home systems and wearable technology. Its low power consumption makes it ideal for automotive electronics, particularly in sensor and control modules.
Q & A
What is the operating voltage range of the MSP430F2132TRTVR?
The operating voltage range is from 1.8V to 3.6V.
How much flash memory does this microcontroller have?
It has 8KB of flash memory.
What is the speed of the MSP430F2132TRTVR?
It operates at a speed of 16MHz.
What type of package does this microcontroller use?
It uses a 32-QFN package.
Is the MSP430F2132TRTVR suitable for battery-operated devices?
Yes, its ultra-low-power design makes it ideal for battery-operated devices.
What industries commonly use this microcontroller?
Industries include industrial automation, consumer electronics, and automotive electronics.
Does it support analog and digital peripherals?
Yes, it integrates both analog and digital peripherals.
What is the RAM size of the MSP430F2132TRTVR?
It has 512B of RAM.
Can it be used in smart home systems?
Yes, it is suitable for smart home systems due to its low power and processing capabilities.
What is the core architecture of this microcontroller?
It features a 16-bit RISC architecture.
