Overview

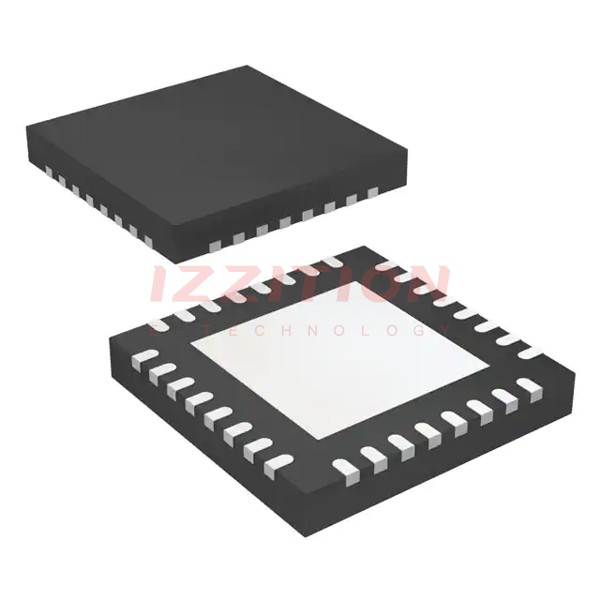

The MSP430F2132IRTVR is a 16-bit ultra-low-power microcontroller (MCU) produced by Texas Instruments. Designed for applications requiring high efficiency and low power consumption, this MCU is part of the MSP430 family, renowned for its energy-efficient performance. It targets developers and engineers working on portable electronics, wireless sensor nodes, and other battery-powered devices. The MSP430F2132IRTVR stands out for its compact design, robust functionality, and integration of advanced peripherals, making it a competitive choice in the embedded systems market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core Processor | MSP430 | - | 16-bit RISC architecture |
| Clock Speed | 16 | MHz | Maximum operating frequency |
| Program Memory Size | 8 | KB | Flash memory |
| RAM Size | 512 | Bytes | Data storage |
| Operating Voltage | 1.8 to 3.6 | V | Wide voltage range |
| Operating Temperature | -40 to +85 | °C | Industrial-grade |
| Package | VQFN-32 | - | Surface-mount design |
| I/O Pins | 24 | - | Flexible connectivity |
| ADC Resolution | 10 | Bits | 8-channel ADC |
| Peripherals | I²C, SPI, UART, PWM, WDT | - | Integrated features |
Key Features
- Ultra-Low Power Consumption: Ideal for battery-operated devices, ensuring extended operational life.
- Compact Design: The VQFN-32 package offers a small footprint, suitable for space-constrained applications.
- Integrated Peripherals: Includes I²C, SPI, UART, and PWM, reducing the need for external components.
- High Performance: The 16-bit RISC architecture ensures efficient processing and fast execution of tasks.
- Wide Operating Voltage: Supports a range of 1.8V to 3.6V, providing flexibility in power supply design.
Applications
The MSP430F2132IRTVR is widely used in various fields, including:
- Portable Electronics: Such as wearable devices and handheld instruments, benefiting from its low power consumption.
- Wireless Sensor Networks: Ideal for IoT applications, where energy efficiency is critical.
- Industrial Automation: Used in control systems and monitoring devices due to its robust performance.
- Medical Devices: Suitable for health monitoring equipment, ensuring reliable operation in critical environments.
- Consumer Electronics: Embedded in smart home devices and appliances, enhancing functionality and efficiency.
Q & A
1. What is the operating voltage range of the MSP430F2132IRTVR?
The operating voltage range is 1.8V to 3.6V.
2. What is the maximum clock speed of this MCU?
The maximum clock speed is 16 MHz.
3. How much flash memory does the MSP430F2132IRTVR have?
It has 8 KB of flash memory.
4. What is the package type of this microcontroller?
It comes in a VQFN-32 package.
5. What peripherals are integrated into the MSP430F2132IRTVR?
Integrated peripherals include I²C, SPI, UART, PWM, and a watchdog timer (WDT).
6. What is the operating temperature range?
The operating temperature range is -40°C to +85°C.
7. How many I/O pins does this MCU have?
It has 24 I/O pins.
8. Is the MSP430F2132IRTVR suitable for battery-powered devices?
Yes, its ultra-low power consumption makes it ideal for battery-powered applications.
9. What is the resolution of the ADC?
The ADC has a resolution of 10 bits.
10. Can this MCU be used in industrial applications?
Yes, its robust design and industrial-grade temperature range make it suitable for industrial applications.
