Overview

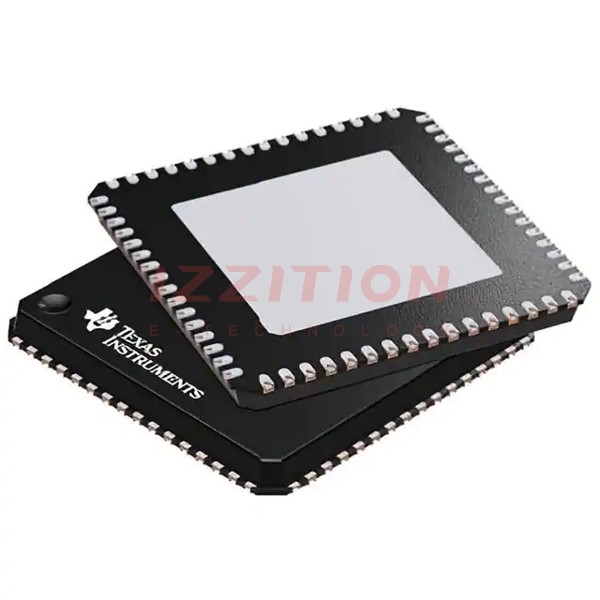

The MSP430F135IRTDR is a 16-bit ultra-low-power microcontroller produced by Texas Instruments. It belongs to the MSP430 family, which is renowned for its energy efficiency and versatility. This model is designed for applications requiring minimal power consumption and high performance, making it ideal for battery-powered devices and portable electronics. Its market positioning targets industries such as IoT, industrial automation, and consumer electronics. The MSP430F135IRTDR stands out with its integrated peripherals, robust processing capabilities, and low power consumption, making it a competitive choice for developers seeking cost-effective and energy-efficient solutions.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core | 16-bit MSP430 | - | RISC architecture |
| Clock Speed | 8 | MHz | Internal oscillator |
| Flash Memory | 16 | KB | Program memory |
| RAM | 512 | B | Data memory |
| Operating Voltage | 1.8 - 3.6 | V | Ultra-low power |
| GPIO Pins | 14 | - | Configurable I/O |
| ADC Resolution | 12 | bit | Integrated ADC |
| Package | VQFN (RTD) | - | 32-pin |
| Operating Temperature | -40 to 85 | °C | Industrial range |
| Power Consumption | 0.1 µA (standby) | µA | Ultra-low power mode |
Key Features
- Ultra-Low Power Consumption: Ideal for battery-operated devices, with multiple power-saving modes.
- Integrated Peripherals: Includes a 12-bit ADC, timers, and communication interfaces (UART, SPI, I2C).
- Compact Design: Small 32-pin VQFN package suitable for space-constrained applications.
- High Performance: 16-bit RISC architecture ensures efficient processing for complex tasks.
- Robust Memory: 16 KB Flash and 512 B RAM for reliable program and data storage.
Applications
The MSP430F135IRTDR is widely used in various industries due to its low power consumption and high efficiency. Key application areas include:
- IoT Devices: Sensor nodes, smart home devices, and wearables benefit from its ultra-low power design.
- Industrial Automation: Used in control systems, monitoring devices, and data loggers.
- Consumer Electronics: Power-efficient solutions for portable gadgets, remote controls, and handheld devices.
- Medical Devices: Suitable for portable medical instruments and health monitoring systems.
- Automotive Electronics: Applied in low-power sensors and control modules.
Q & A
1. What is the operating voltage range of the MSP430F135IRTDR?
The operating voltage range is 1.8 V to 3.6 V, making it suitable for low-power applications.
2. Does this microcontroller support analog-to-digital conversion?
Yes, it includes a 12-bit ADC for precise analog signal processing.
3. What is the maximum clock speed of the MSP430F135IRTDR?
The maximum clock speed is 8 MHz, provided by the internal oscillator.
4. How much flash memory does this microcontroller have?
It has 16 KB of flash memory for program storage.
5. Is the MSP430F135IRTDR suitable for battery-powered devices?
Yes, its ultra-low power consumption makes it ideal for battery-operated applications.
6. What communication interfaces are supported?
It supports UART, SPI, and I2C for versatile connectivity.
7. What is the package type of this microcontroller?
It comes in a 32-pin VQFN (RTD) package.
8. Can it operate in industrial temperature ranges?
Yes, it operates reliably in temperatures from -40°C to 85°C.
9. What is the standby power consumption of the MSP430F135IRTDR?
Standby power consumption is as low as 0.1 µA.
10. What are the key advantages of the MSP430F135IRTDR?
Its key advantages include ultra-low power consumption, integrated peripherals, compact design, and high performance.
