Overview

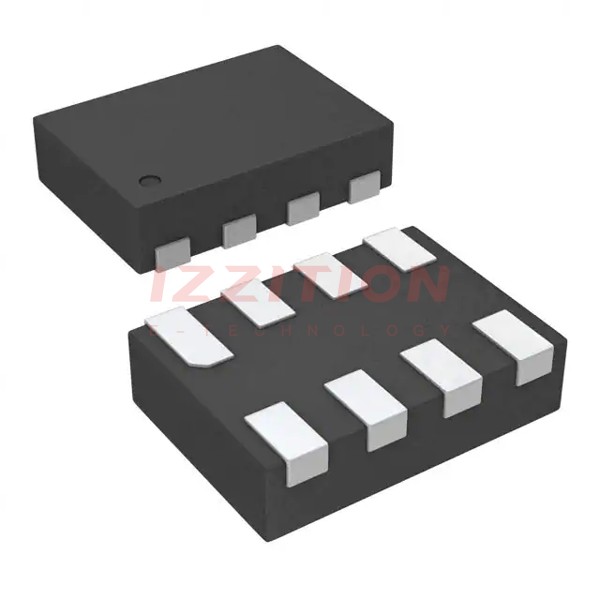

The LSF0102DQER is a dual bidirectional multi-voltage level translator produced by Texas Instruments. This component is part of the LSF0102 series and is designed to facilitate communication between devices operating at different voltage levels. It is particularly useful in applications where voltage-level translation is necessary, such as in consumer electronics, industrial automation, and automotive systems.
Key Specifications
| Parameter | Value |
|---|---|
| Technology Family | LSF |
| Bits (#) | 2 |
| High Input Voltage (min) (V) | 0.95 |
| High Input Voltage (max) (V) | 5 |
| Vout (min) (V) | 0.95 |
| Vout (max) (V) | 5 |
| Data Rate (max) (MBps) | 200 |
| Supply Current (max) (µA) | 12.5 |
| Input Type | Transmission Gate |
| Output Type | 3-State, Transmission Gate |
| Operating Temperature Range (°C) | -40 to 125 |
| Package Type | SSOP (DCT)-8 |
| Pin Count | 8 |
| ESD Protection | Yes |
Key Features
- Dual bidirectional multi-voltage level translation
- Supports a wide range of voltage levels: 1.65V to 5.5V
- High data rate of up to 200 MBps
- Low supply current of up to 12.5 µA
- Transmission gate input and 3-state/output type
- Operating temperature range from -40°C to 125°C
- Output enable feature
- ESD protection
Applications
The LSF0102DQER is commonly used in various applications where voltage-level translation is required. These include:
- GPIO interfaces
- I2C and SMBus communication
- MDIO and PMBus applications
- Consumer electronics
- Industrial automation
- Automotive systems
Q & A
- What is the primary function of the LSF0102DQER?
The primary function is to act as a dual bidirectional multi-voltage level translator. - What are the supported voltage levels for the LSF0102DQER?
The component supports voltage levels from 1.65V to 5.5V. - What is the maximum data rate of the LSF0102DQER?
The maximum data rate is up to 200 MBps. - What is the package type of the LSF0102DQER?
The package type is SSOP (DCT)-8. - What is the operating temperature range of the LSF0102DQER?
The operating temperature range is from -40°C to 125°C. - Does the LSF0102DQER have ESD protection?
Yes, it has ESD protection. - What are some common applications of the LSF0102DQER?
Common applications include GPIO interfaces, I2C and SMBus communication, MDIO and PMBus applications, consumer electronics, industrial automation, and automotive systems. - What is the maximum supply current of the LSF0102DQER?
The maximum supply current is up to 12.5 µA. - Is the LSF0102DQER RoHS compliant?
Yes, it is RoHS compliant. - What is the lifecycle status of the LSF0102DQER?
The lifecycle status is Active (Recommended for new designs).
