Overview

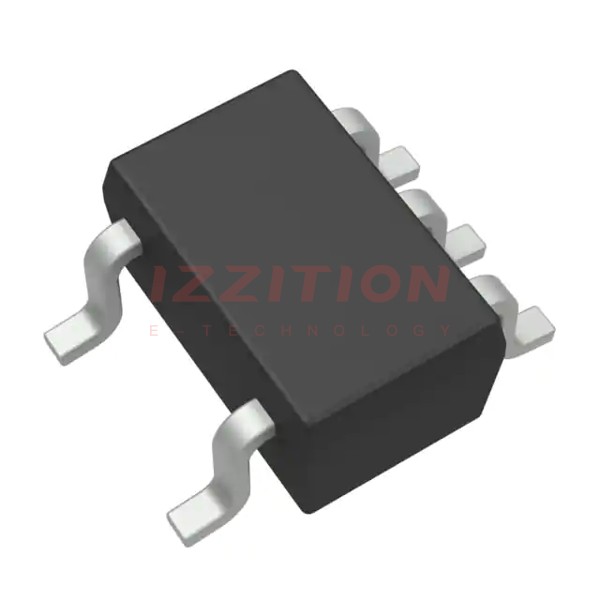

The LMV841QMGX/NOPB is a general-purpose operational amplifier manufactured by Texas Instruments. This device is designed to operate in a wide range of applications, particularly in automotive and audio systems, due to its robust specifications and features. It is packaged in a SOT-SC70 (DCK) package with 5 pins, making it compact and suitable for space-constrained designs.
Key Specifications
| Specification | Value |
|---|---|
| Number of Circuits | 1 |
| Package Type | SOT-SC70 (DCK) |
| Number of Pins | 5 |
| Supply Voltage Range | 2.7V to 5.5V |
| Bandwidth | 12 MHz |
| Input Type | CMOS |
| Output Type | Rail-to-Rail |
| Noise | Low Noise |
Key Features
- Wide supply voltage range: 2.7V to 5.5V, making it versatile for various power supply conditions.
- CMOS input stage for low power consumption and high input impedance.
- Rail-to-Rail output swing capability, allowing for maximum signal swing and minimizing distortion.
- Low noise and high bandwidth (12 MHz), suitable for audio and other high-fidelity applications.
- Compact SOT-SC70 (DCK) package, ideal for space-constrained designs.
Applications
- Automotive systems: Due to its automotive qualification (Q1), it is suitable for use in various automotive applications where reliability and robustness are critical.
- Audio systems: The low noise and high bandwidth make it an excellent choice for improving tone control and overall audio quality.
- General-purpose amplification: Its wide supply range and rail-to-rail output make it a versatile option for a variety of general-purpose amplification needs.
Q & A
- What is the package type of the LMV841QMGX/NOPB?
The LMV841QMGX/NOPB is packaged in a SOT-SC70 (DCK) package with 5 pins. - What is the supply voltage range of the LMV841QMGX/NOPB?
The supply voltage range is from 2.7V to 5.5V. - What is the bandwidth of the LMV841QMGX/NOPB?
The bandwidth is 12 MHz. - Is the LMV841QMGX/NOPB suitable for automotive applications?
Yes, it is automotive qualified (Q1) and suitable for use in automotive systems. - What are the key features of the LMV841QMGX/NOPB?
The key features include CMOS input, rail-to-rail output, low noise, and a wide supply voltage range. - What type of input does the LMV841QMGX/NOPB have?
The LMV841QMGX/NOPB has a CMOS input stage. - What is the output type of the LMV841QMGX/NOPB?
The output type is rail-to-rail. - Is the LMV841QMGX/NOPB suitable for audio applications?
Yes, it is suitable for audio applications due to its low noise and high bandwidth. - Where can I purchase the LMV841QMGX/NOPB?
You can purchase the LMV841QMGX/NOPB from various distributors such as Digi-Key, Mouser, and Texas Instruments' official website. - What is the significance of the 'Q1' in LMV841QMGX/NOPB?
The 'Q1' indicates that the device is automotive qualified, meeting specific standards for reliability and performance in automotive applications.
