LMH0002SQE/NOPB
  • Share:

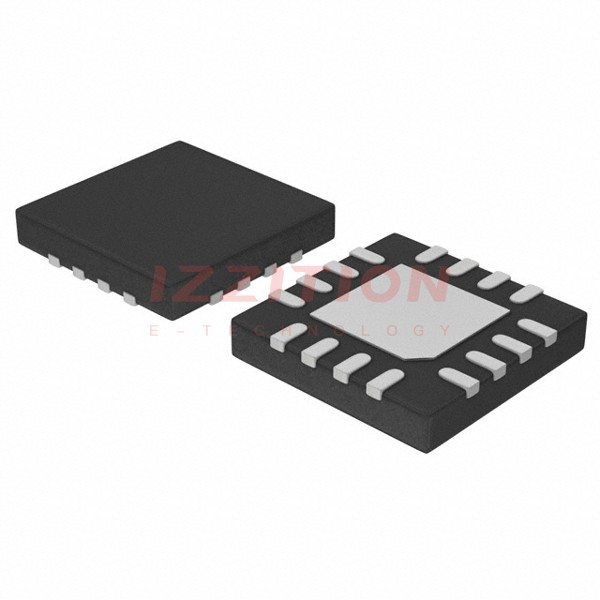

Texas Instruments LMH0002SQE/NOPB

Manufacturer No:
LMH0002SQE/NOPB
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
IC VIDEO SERIAL DRIVER 16WQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LMH0002SQE/NOPB is a high-speed serial digital cable driver produced by Texas Instruments. This monolithic device is designed for use in SMPTE 292M, SMPTE 344M, and SMPTE 259M serial digital video and ITU-T G.703 serial digital data transmission applications. It supports data rates up to 1.485 Gbps and is suitable for various video and data transmission systems.

The device operates from a single 3.3V supply and is available in an 8-pin SOIC or 16-pin WQFN package. It features adjustable output amplitude and selectable slew rates, making it compliant with both SMPTE 259M and SMPTE 292M standards.

Key Specifications

Parameter Min Typ Max Units
Supply Voltage (VCC - VEE) 3.0 3.3 3.6 V
Operating Temperature Range -40 - 85 °C
Input Voltage Swing (Differential) 100 2000 - mVp-p
Output Voltage Swing (Single-ended, 75Ω load) 750 800 850 mVp-p (RREF = 750Ω)
Power Consumption (SD Mode) - 125 - mW
Power Consumption (HD Mode) - 149 - mW
Data Rates - - 1.485 Gbps
Package Type - - 16-pin WQFN -

Key Features

  • SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant serial digital interfaces
  • Supports DVB-ASI at 270 Mbps and Sonet/SDH and ATM interfaces
  • Differential input and 75Ω differential output
  • Selectable slew rate for SMPTE 259M and SMPTE 292M compliance
  • Adjustable output amplitude via a single external resistor
  • Single 3.3V supply operation
  • Available in 8-pin SOIC or 16-pin WQFN packages
  • Form-fit-function compatible with Gennum GS1528, GS1528A, and GS1578A

Applications

  • Digital routers and switches
  • Distribution amplifiers
  • Buffer applications
  • Set top boxes
  • Security cameras
  • Video transmission systems
  • ITU-T G.703 serial digital data transmission

Q & A

  1. What are the primary standards that the LMH0002SQE/NOPB complies with?

    The LMH0002SQE/NOPB complies with SMPTE 292M, SMPTE 344M, and SMPTE 259M standards.

  2. What is the maximum data rate supported by the LMH0002SQE/NOPB?

    The device supports data rates up to 1.485 Gbps.

  3. How is the output voltage swing adjusted on the LMH0002SQE/NOPB?

    The output voltage swing is adjustable via a single external resistor connected between the RREF pin and VCC.

  4. What are the available package types for the LMH0002SQE/NOPB?

    The device is available in 8-pin SOIC and 16-pin WQFN packages.

  5. What is the operating supply voltage for the LMH0002SQE/NOPB?

    The device operates from a single 3.3V supply.

  6. What is the typical power consumption of the LMH0002SQE/NOPB in SD and HD modes?

    The typical power consumption is 125 mW in SD mode and 149 mW in HD mode.

  7. Is the LMH0002SQE/NOPB compatible with other existing devices?

    Yes, it is form-fit-function compatible with Gennum GS1528, GS1528A, and GS1578A.

  8. What are some common applications of the LMH0002SQE/NOPB?

    Common applications include digital routers and switches, distribution amplifiers, buffer applications, set top boxes, and security cameras.

  9. How is the slew rate controlled on the LMH0002SQE/NOPB?

    The slew rate is controlled via the SD/HD pin, allowing for compliance with either SMPTE 259M or SMPTE 292M standards.

  10. What is the operating temperature range for the LMH0002SQE/NOPB?

    The operating temperature range is from -40°C to +85°C.

Product Attributes

Function:Driver
Applications:Consumer Video
Standards:DVB-ASI, SMPTE
Control Interface:Serial
Voltage - Supply:3.135V ~ 3.465V
Mounting Type:Surface Mount
Package / Case:16-WQFN Exposed Pad
Supplier Device Package:16-WQFN (4x4)
