Overview

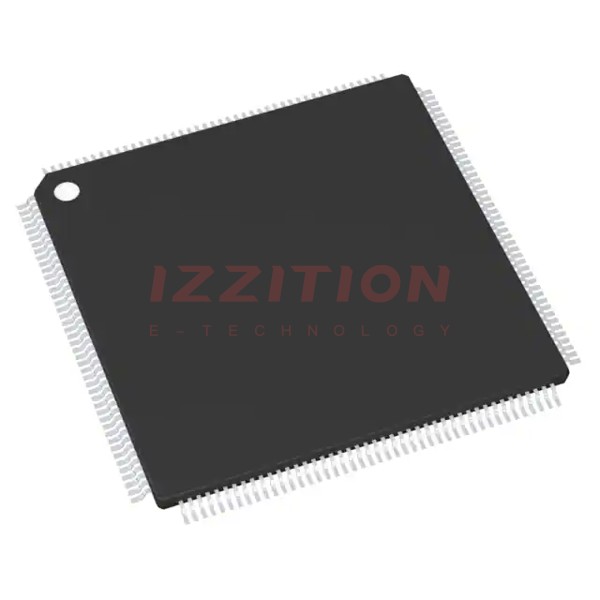

The Texas Instruments F28386SPTPS is a high-performance 32-bit microcontroller from the C2000™ family. It features a dual-core architecture with one C28x+CLA CPU, providing robust processing capabilities for a variety of applications. The microcontroller includes 1.0 MB of flash memory, an FPU64 floating-point unit, and a Control Law Accelerator (CLA) for enhanced computational efficiency. Additionally, it supports Ethernet connectivity and is packaged in a 176-pin HLQFP (PTP) package.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 32-bit C28x RISC |
| Core | 1x C28x+CLA CPU |
| Flash Memory | 1.0 MB (512KB x 16) |
| Operating Frequency | 200 MHz |
| Floating-Point Unit | FPU64 |
| Package Type | 176-pin HLQFP (PTP) |
| Voltage | 1.2V/3.3V |
| Connectivity | Ethernet |
Key Features
- Dual-core architecture with one C28x+CLA CPU for enhanced processing and control capabilities.
- 1.0 MB of flash memory for extensive program storage.
- FPU64 floating-point unit for high-speed mathematical computations.
- Control Law Accelerator (CLA) for efficient control algorithms execution.
- Ethernet connectivity for network communication.
- C2000Ware support, including device-specific drivers, libraries, and peripheral examples to minimize development time.
Applications
The F28386SPTPS microcontroller is designed for various high-performance applications, including:
- Industrial automation and control systems.
- Motor control and drive systems.
- Power electronics and renewable energy systems.
- Medical devices requiring precise control and high computational power.
- Automotive systems, such as engine control units and safety systems.
Q & A
- What is the core architecture of the F28386SPTPS microcontroller?
The F28386SPTPS features a dual-core architecture with one C28x+CLA CPU. - How much flash memory does the F28386SPTPS have?
The microcontroller has 1.0 MB of flash memory. - What is the operating frequency of the F28386SPTPS?
The operating frequency is 200 MHz. - Does the F28386SPTPS support floating-point operations?
Yes, it includes an FPU64 floating-point unit. - What type of package does the F28386SPTPS come in?
The microcontroller is packaged in a 176-pin HLQFP (PTP) package. - What voltage does the F28386SPTPS operate at?
The microcontroller operates at 1.2V/3.3V. - Does the F28386SPTPS have Ethernet connectivity?
Yes, it supports Ethernet connectivity. - What is C2000Ware, and how does it relate to the F28386SPTPS?
C2000Ware is a set of software and documentation that includes device-specific drivers, libraries, and peripheral examples to minimize development time for C2000 microcontrollers like the F28386SPTPS. - What are some common applications of the F28386SPTPS?
Common applications include industrial automation, motor control, power electronics, medical devices, and automotive systems. - Where can I find detailed specifications and documentation for the F28386SPTPS?
Detailed specifications and documentation can be found on the Texas Instruments website and through distributors like Digi-Key and Mouser.
