Overview

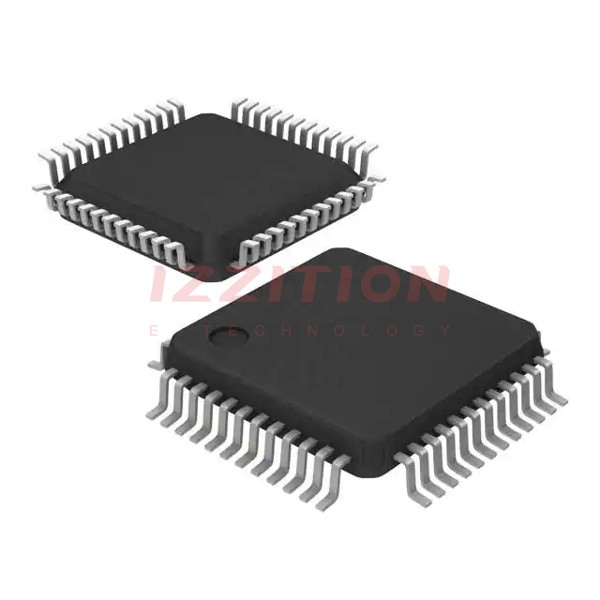

The F280025CPMSR is a 32-bit microcontroller (MCU) from Texas Instruments, part of the C2000™ real-time microcontroller series. Designed for high-performance and low-latency applications, this MCU is particularly suited for enhancing the efficiency of power electronics. Its target user groups include engineers and developers working on industrial motor drives, digital power systems, electric vehicles, and other real-time control applications. The F280025CPMSR stands out for its advanced processing capabilities, integrated analog modules, and support for high-frequency switching technologies like GaN and SiC.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Core | C28x DSP | - | 32-bit |
| Clock Speed | 100 MHz | MHz | - |
| Flash Memory | 512 KB | KB | - |
| RAM | 100 KB | KB | - |
| PWM Channels | 14 | - | Frequency-independent resolution |
| Communication Interfaces | SPI, SCI, I2C, PMBus, LIN, CAN | - | Multiple options |
| Package | LQFP-64 | - | SMD/SMT |
| Operating Temperature | -40 to 125 | °C | - |
Key Features
- High-performance 32-bit C28x DSP core for real-time control applications.
- Integrated trigonometric math unit (TMU) for faster algorithm execution.
- 14 PWM channels supporting advanced power topologies.
- Configurable logic blocks (CLB) for custom logic integration.
- Robust communication interfaces including CAN and LIN for industrial applications.
Applications
The F280025CPMSR is widely used in industrial motor drives, motor control systems, photovoltaic inverters, and digital power systems. It is also a key component in electric vehicle powertrains and transportation systems. Its ability to handle high-frequency switching and support for GaN and SiC technologies make it ideal for applications requiring high power density and efficiency.
Q & A
1. What is the core architecture of the F280025CPMSR?
The F280025CPMSR features a 32-bit C28x DSP core optimized for real-time control applications.
2. What is the maximum clock speed of this MCU?
The maximum clock speed is 100 MHz.
3. How many PWM channels does it support?
It supports 14 PWM channels with frequency-independent resolution.
4. What communication interfaces are available?
It includes SPI, SCI, I2C, PMBus, LIN, and CAN interfaces.
5. Is it suitable for high-frequency switching applications?
Yes, it supports high-frequency switching technologies like GaN and SiC.
6. What is the operating temperature range?
The operating temperature range is -40°C to 125°C.
7. Can it be used in electric vehicles?
Yes, it is commonly used in electric vehicle powertrains and transportation systems.
8. Does it support custom logic integration?
Yes, it includes configurable logic blocks (CLB) for custom logic.
9. What is the package type?
It comes in an LQFP-64 package.
10. Is it RoHS compliant?
Yes, it is RoHS compliant.
