Overview

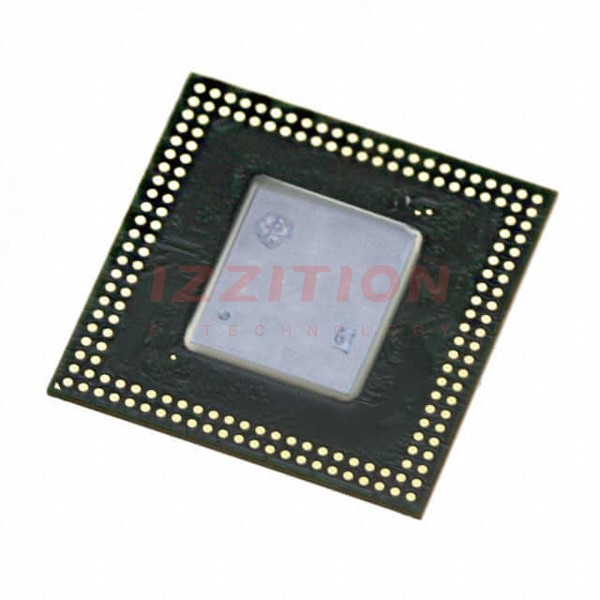

The DM3730CBPD100, produced by Texas Instruments, is a high-performance digital media processor part of the DM37x generation. This processor is built on TI's advanced 45-nm process technology, offering a balance of high performance and low power consumption. It is designed to support various high-level operating systems (HLOS) and real-time operating systems (RTOS), including Linux and Windows Embedded CE. The DM3730 is backward compatible with previous Cortex-A8 and OMAP processors, making it a versatile choice for a wide range of applications.
Key Specifications
| Parameter | Description |
|---|---|
| Processor Type | Digital Media Processor |
| Process Technology | 45-nm |
| Core | ARM Cortex-A8 |
| Operating Frequency | Up to 1 GHz |
| Graphics Processing | PowerVR SGX™ 530 GPU |
| Memory Interface | Supports various memory types including DDR2, DDR3, and LPDDR |
| Operating Temperature | Commercial, Industrial, and Extended temperature versions available |
| Package Type | 515-pin or 423-pin s-PBGA package |
| Power Consumption | Varies based on operating conditions; typical values provided in datasheet |
| Clock Specifications | Supports various clock frequencies; detailed specifications in datasheet |
Key Features
- High Performance: Offers best-in-class ARM and graphics performance with low power consumption.
- Operating System Support: Supports various HLOS and RTOS solutions including Linux and Windows Embedded CE.
- Backward Compatibility: Fully backward compatible with previous Cortex-A8 and OMAP processors.
- Graphics and Video Capabilities: Includes PowerVR SGX™ 530 GPU for enhanced graphics and video processing.
- Flexible Memory Interface: Supports DDR2, DDR3, and LPDDR memory types.
- Advanced Power Management: Features SmartReflex technology for dynamic voltage and frequency scaling.
Applications
- Embedded Systems: Suitable for various embedded applications requiring high performance and low power consumption.
- Industrial Automation: Can be used in industrial automation systems that require robust processing and low power consumption.
- Medical Devices: Applicable in medical devices that need high-performance processing with low power consumption.
- Consumer Electronics: Used in consumer electronics such as set-top boxes, digital media players, and more.
- Automotive Systems: Can be integrated into automotive systems for infotainment and other applications.
Q & A
- What is the DM3730CBPD100 processor based on?
The DM3730CBPD100 is based on the ARM Cortex-A8 core and is part of the DM37x generation of digital media processors.
- What process technology is used in the DM3730CBPD100?
The DM3730CBPD100 is built on TI's advanced 45-nm process technology.
- What are the supported operating systems for the DM3730CBPD100?
The DM3730CBPD100 supports various HLOS and RTOS solutions including Linux and Windows Embedded CE.
- What is the maximum operating frequency of the DM3730CBPD100?
The maximum operating frequency of the DM3730CBPD100 is up to 1 GHz.
- What type of graphics processing unit (GPU) does the DM3730CBPD100 include?
The DM3730CBPD100 includes the PowerVR SGX™ 530 GPU.
- What types of memory interfaces does the DM3730CBPD100 support?
The DM3730CBPD100 supports various memory types including DDR2, DDR3, and LPDDR.
- What are the available package types for the DM3730CBPD100?
The DM3730CBPD100 is available in 515-pin or 423-pin s-PBGA packages.
- What is the typical power consumption of the DM3730CBPD100?
The power consumption varies based on operating conditions; detailed specifications are provided in the datasheet.
- Does the DM3730CBPD100 support backward compatibility with previous processors?
Yes, the DM3730CBPD100 is fully backward compatible with previous Cortex-A8 and OMAP processors.
- What advanced power management features does the DM3730CBPD100 include?
The DM3730CBPD100 features SmartReflex technology for dynamic voltage and frequency scaling.
