Overview
The DDC114IRTCR is a high-precision, quad-input, 20-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This electronic component is designed for applications requiring accurate data acquisition and signal processing. It is particularly suited for industrial automation, medical instrumentation, and scientific research, where high-resolution measurements are critical. The DDC114IRTCR stands out in the market for its exceptional accuracy, low noise, and robust performance in demanding environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 20 | Bits | |
| Input Channels | 4 | Quad-input | |
| Sampling Rate | 3.13 | kSPS | |
| Supply Voltage | 5 | V | |
| Operating Temperature | -40 to 85 | °C | |
| Package | 48-VQFN |
Key Features
- High-resolution 20-bit ADC for precise measurements.
- Quad-input configuration for multi-channel data acquisition.
- Low noise and high accuracy, ideal for sensitive applications.
- Robust performance in extreme temperature ranges.
- Compact 48-VQFN package for space-constrained designs.
Applications
The DDC114IRTCR is widely used in industrial automation for process control and monitoring, in medical instrumentation for diagnostic equipment, and in scientific research for high-precision data acquisition. Its high resolution and low noise make it suitable for applications such as strain gauge measurements, temperature sensing, and spectroscopy. Additionally, its compact form factor and reliability make it a preferred choice for portable and embedded systems.
Q & A
What is the resolution of the DDC114IRTCR?
The DDC114IRTCR has a resolution of 20 bits, providing high-precision measurements.
How many input channels does it support?
It supports four input channels, making it suitable for multi-channel data acquisition.
What is the sampling rate of this ADC?
The sampling rate is 3.13 kSPS (kilo-samples per second).
What is the operating temperature range?
It operates reliably in temperatures ranging from -40°C to 85°C.
What package does the DDC114IRTCR come in?

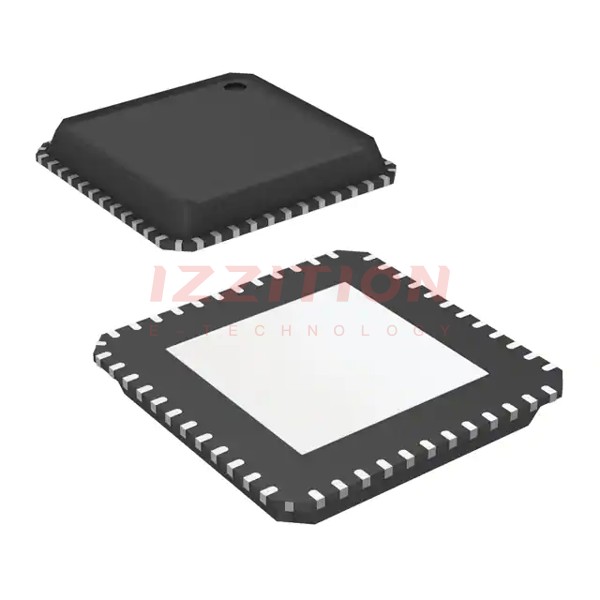

It is available in a compact 48-VQFN package.
Is the DDC114IRTCR suitable for medical applications?
Yes, its high accuracy and low noise make it ideal for medical instrumentation.
Can it be used in industrial automation?
Absolutely, it is designed for robust performance in industrial environments.
What is the supply voltage requirement?
The supply voltage is 5V.
Does it support high-precision measurements?
Yes, its 20-bit resolution ensures high-precision data acquisition.
Is the DDC114IRTCR suitable for portable devices?
Yes, its compact package and low power consumption make it ideal for portable and embedded systems.
