Overview

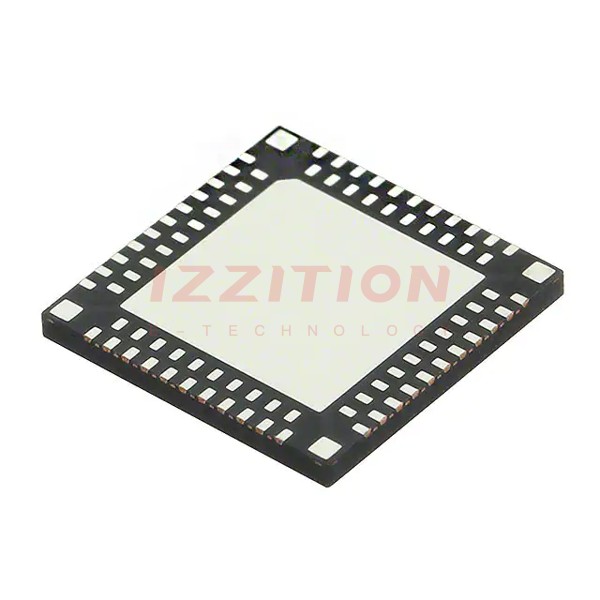

The DAC3482IRKDR is a high-performance, 16-bit digital-to-analog converter (DAC) manufactured by Texas Instruments. This IC is designed for applications requiring high-speed data conversion with precision. It is part of the DAC3482 series, which is widely used in communication, industrial, and test & measurement systems. The DAC3482IRKDR features a 2-channel architecture with a sampling rate of up to 1.25 GSPS, making it suitable for demanding signal processing tasks. Its compact 88-pin WQFN package ensures efficient integration into space-constrained designs. This product is targeted at engineers and developers working on advanced signal processing systems, offering a competitive edge with its high-speed performance and low power consumption.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 16 | bit | - |
| Channels | 2 | - | - |
| Sampling Rate | 1.25 | GSPS | - |
| Supply Voltage | 3.3, 1.2 | V | Dual supply |
| Operating Temperature | -40 to +85 | °C | - |
| Package | WQFN-88 | - | Surface mount |
Key Features
- High-speed 16-bit resolution for precise signal conversion.
- Dual-channel architecture supports complex signal processing tasks.
- 1.25 GSPS sampling rate enables real-time data conversion.
- Low power consumption enhances energy efficiency.
- Compact WQFN-88 package for space-constrained designs.
Applications
The DAC3482IRKDR is ideal for a wide range of applications, including wireless communication systems, radar systems, and high-speed data acquisition. Its high-speed and high-resolution capabilities make it suitable for use in test and measurement equipment, where accuracy and speed are critical. Additionally, it is used in industrial automation systems for real-time signal processing and control. The product's robust design and performance ensure reliable operation in demanding environments.
Q & A
What is the resolution of the DAC3482IRKDR?
The DAC3482IRKDR has a resolution of 16 bits.
How many channels does the DAC3482IRKDR support?
It supports 2 channels.
What is the maximum sampling rate of the DAC3482IRKDR?
The maximum sampling rate is 1.25 GSPS.
What is the operating temperature range of the DAC3482IRKDR?
It operates within a temperature range of -40°C to +85°C.
What package does the DAC3482IRKDR use?
It uses a WQFN-88 package.
What are the supply voltage requirements for the DAC3482IRKDR?
It requires dual supply voltages of 3.3V and 1.2V.
Is the DAC3482IRKDR suitable for wireless communication systems?
Yes, its high-speed and high-resolution capabilities make it ideal for wireless communication systems.
Can the DAC3482IRKDR be used in industrial automation?
Yes, it is suitable for real-time signal processing and control in industrial automation.
What is the power consumption of the DAC3482IRKDR?
The DAC3482IRKDR is designed for low power consumption, enhancing energy efficiency.
What are the typical applications of the DAC3482IRKDR?
Typical applications include wireless communication, radar systems, high-speed data acquisition, and test and measurement equipment.
