Overview
The DAC124S085CIMM-TI, produced by Texas Instruments, is a full-featured, general-purpose, quad, 12-bit, voltage-output digital-to-analog converter (DAC). This device operates from a single 2.7-V to 5.5-V supply and is known for its low power consumption, with typical power usage of 1.1 mW at 3 V and 2.4 mW at 5 V. It is packaged in 10-pin WSON and VSSOP packages, making it one of the smallest quad DACs in its class. The DAC124S085CIMM-TI features an on-chip output amplifier that allows rail-to-rail output swing and a three-wire serial interface compatible with standard SPI, QSPI, MICROWIRE, and DSP interfaces, operating at clock rates up to 40 MHz across the entire supply voltage range.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 Bits |
| Power Supply Range | 2.7 V to 5.5 V |
| Power Consumption (Typical) | 1.1 mW at 3 V, 2.4 mW at 5 V |
| Power Consumption (Power Down) | 0.3 µW at 3 V, 0.8 µW at 5 V |
| Integral Nonlinearity (INL) | ±8 LSB (Maximum) |
| Differential Nonlinearity (DNL) | 0.7 to 0.5 LSB (Maximum) |
| Setting Time | 8.5 µs (Maximum) |
| Zero Code Error | 15 mV (Maximum) |
| Full-Scale Error | 0.75% FS (Maximum) |
| Operating Temperature Range | -40°C to 105°C |

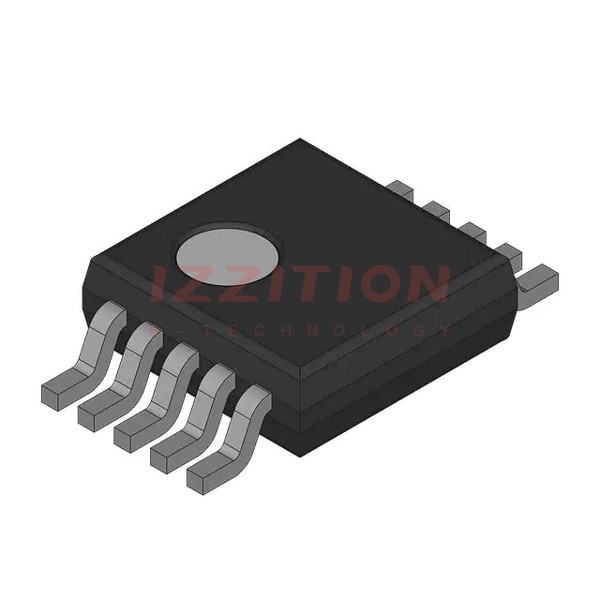

| Package Type | 10-pin WSON, VSSOP |
Key Features
- Ensured Monotonicity
- Low Power Operation
- Rail-to-Rail Voltage Output
- Power-On Reset to 0 V
- Simultaneous Output Updating
- Wide Power Supply Range: 2.7 V to 5.5 V
- Industry’s Smallest Package
- Power-Down Modes
- Three-Wire Serial Interface compatible with SPI, QSPI, MICROWIRE, and DSP interfaces
- Reference Voltage Range: 1 V to VA
Applications
The DAC124S085CIMM-TI is an excellent choice for use in battery-operated equipment due to its low power consumption and small package size. It is suitable for a variety of applications, including industrial control systems, medical devices, and portable electronic devices. The device’s ability to operate over an extended industrial temperature range of -40°C to 105°C makes it versatile for use in harsh environments.
Q & A
- What is the resolution of the DAC124S085CIMM-TI?
The resolution of the DAC124S085CIMM-TI is 12 bits. - What is the power supply range for the DAC124S085CIMM-TI?
The power supply range is from 2.7 V to 5.5 V. - How much power does the DAC124S085CIMM-TI consume typically?
The typical power consumption is 1.1 mW at 3 V and 2.4 mW at 5 V. - What are the power-down modes of the DAC124S085CIMM-TI?
The device has power-down modes that reduce power consumption to less than a microWatt with three different termination options. - What is the operating temperature range of the DAC124S085CIMM-TI?
The operating temperature range is -40°C to 105°C. - What types of packages are available for the DAC124S085CIMM-TI?
The device is available in 10-pin WSON and VSSOP packages. - Is the DAC124S085CIMM-TI compatible with standard serial interfaces?
Yes, it is compatible with standard SPI, QSPI, MICROWIRE, and DSP interfaces. - What is the maximum clock rate for the serial interface?
The serial interface operates at clock rates up to 40 MHz across the entire supply voltage range. - Can the outputs be updated simultaneously or individually?
All four outputs can be updated simultaneously or individually depending on the setting of the two mode of operation bits. - What is the purpose of the power-on reset circuit?
The power-on reset circuit ensures that the DAC output powers up to zero volts and remains there until there is a valid write to the device.
