Overview
The CD74HCT4052M96 is a 5-V, 4:1 differential, 1-channel analog multiplexer and demultiplexer produced by Texas Instruments. This device utilizes silicon gate CMOS technology to achieve high operating speeds similar to LSTTL while maintaining the low power consumption of standard CMOS integrated circuits. It is designed to control analog voltages that may vary across the voltage supply range, making it a versatile component for various applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package | SOIC (D) | - |
| Pins | 16 | - |
| Operating Temperature Range | -55 to 125 | °C |
| Analog Input Voltage Range | ±5V maximum | V |
| ON Resistance (typical) | 70Ω (VCC – VEE = 4.5V), 40Ω (VCC – VEE = 9V) | Ω |
| Propagation Delay (typical) | 12 ns (VCC = 4.5V to 5.5V, TA = 25°C) | ns |
| Input High Voltage (VIH) | 2 V minimum | V |
| Input Low Voltage (VIL) | 0.8 V maximum | V |
| Switch Voltage | 0V to 10V | V |
Key Features
- Qualified for automotive applications
- Wide analog input voltage range: ±5V maximum
- Low ON-resistance: 70Ω typical (VCC – VEE = 4.5V), 40Ω typical (VCC – VEE = 9V)
- Low crosstalk between switches
- Fast switching and propagation speeds
- Break-before-make switching
- Wide operating temperature range: –40°C to +125°C
- Operation control voltage: 4.5V to 5.5V
- Direct LSTTL input logic compatibility
- CMOS input compatibility
Applications
The CD74HCT4052M96 is suitable for a variety of applications, including:
- Automotive systems due to its qualification for automotive applications
- Analog signal routing and switching in audio and video equipment
- Data acquisition systems where fast and accurate analog signal switching is required
- Industrial control systems that need reliable and high-speed analog multiplexing
- Medical devices requiring precise analog signal handling
Q & A
- What is the CD74HCT4052M96?
The CD74HCT4052M96 is a 5-V, 4:1 differential, 1-channel analog multiplexer and demultiplexer produced by Texas Instruments.
- What is the package type of the CD74HCT4052M96?

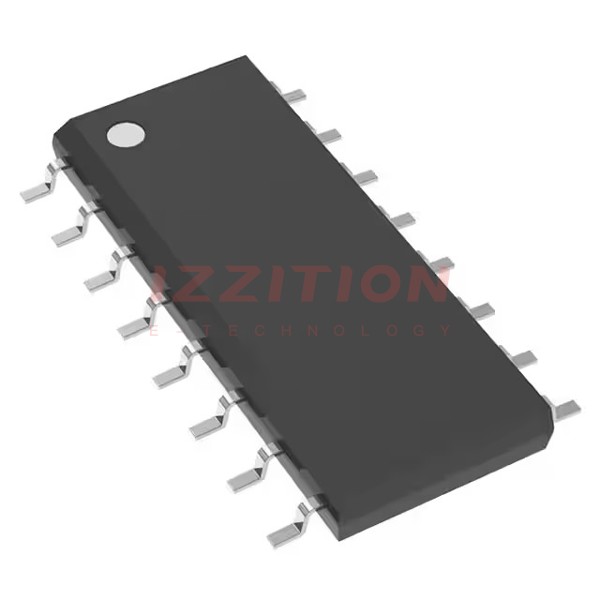

The CD74HCT4052M96 comes in a SOIC (D) package with 16 pins.
- What is the operating temperature range of the CD74HCT4052M96?
The operating temperature range is –55°C to +125°C.
- What is the typical ON resistance of the CD74HCT4052M96?
The typical ON resistance is 70Ω (VCC – VEE = 4.5V) and 40Ω (VCC – VEE = 9V).
- Is the CD74HCT4052M96 qualified for automotive applications?
- What is the propagation delay of the CD74HCT4052M96?
The propagation delay is typically 12 ns (VCC = 4.5V to 5.5V, TA = 25°C).
- What are the input voltage levels for the CD74HCT4052M96?
The input high voltage (VIH) is 2 V minimum, and the input low voltage (VIL) is 0.8 V maximum.
- What is the switch voltage range of the CD74HCT4052M96?
The switch voltage range is 0V to 10V.
- Does the CD74HCT4052M96 support LSTTL and CMOS input compatibility?
- What are some common applications of the CD74HCT4052M96?
