Overview
The CD40106B, produced by Texas Instruments, is a CMOS Hex Schmitt-Trigger Inverter device. It consists of six independent inverters, each with a Schmitt-Trigger input. This device is designed to handle noisy or slow input signals by providing a minimum separation between positive and negative switching thresholds, thus preventing issues like oscillation or excessive current consumption. The CD40106B operates over a wide voltage range from 3 V to 18 V and is rated for ambient temperature operation from –55°C to +125°C.
Key Specifications
| Parameter | Value | Unit | Conditions |
|---|---|---|---|

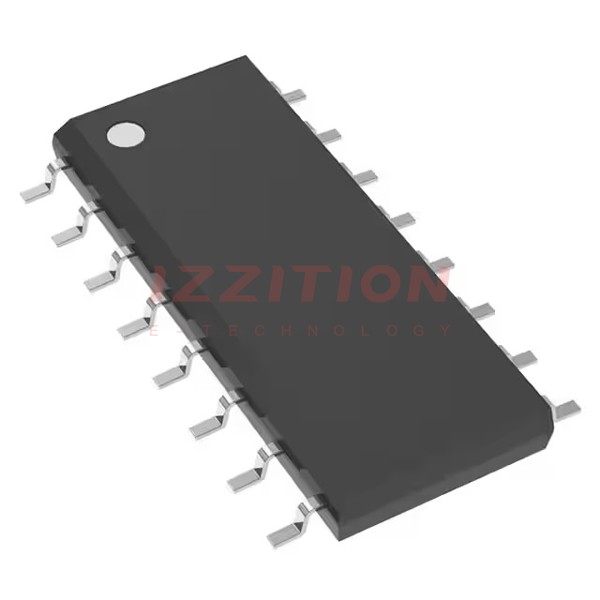

| Package | SOIC (D) | - | - |
| Pins | 14 | - | - |
| Operating Temperature Range | –55 to 125 | °C | - |
| Supply Voltage (VDD) | 3 to 18 | V | - |
| Hysteresis Voltage (VH) | 0.9 V at VDD = 5 V, 2.3 V at VDD = 10 V, 3.5 V at VDD = 15 V | V | - |
| Quiescent Current | 20 µA at 20 V | µA | - |
| Maximum Input Current | 1 µA at 18 V over full temperature range | µA | - |
| Propagation Delay Time | 140 ns at VDD = 5 V, 70 ns at VDD = 10 V, 60 ns at VDD = 15 V | ns | TA = 25°C, input tr, tf = 20 ns, CL = 50 pF, RL = 200 kΩ |
| Transition Time | 100 ns at VDD = 5 V, 50 ns at VDD = 10 V, 40 ns at VDD = 15 V | ns | TA = 25°C, input tr, tf = 20 ns, CL = 50 pF, RL = 200 kΩ |
Key Features
- Schmitt-Trigger Inputs with hysteresis voltage to improve noise immunity
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
- Low quiescent current of 20 µA at 20 V
- Maximum input current of 1 µA at 18 V over the full package temperature range
- Low VDD and VSS current during slow input ramp
- 5-V, 10-V, and 15-V parametric ratings
Applications
- Wave and Pulse Shapers
- High-Noise-Environment Systems
- Monostable Multivibrators
- Astable Multivibrators
Q & A
- What is the CD40106B device?
The CD40106B is a CMOS Hex Schmitt-Trigger Inverter device consisting of six independent inverters with Schmitt-Trigger inputs.
- What is the operating voltage range of the CD40106B?
The CD40106B operates over a voltage range from 3 V to 18 V.
- What is the temperature range for the CD40106B?
The device is rated for ambient temperature operation from –55°C to +125°C.
- What is the purpose of the Schmitt-Trigger inputs?
The Schmitt-Trigger inputs are designed to provide a minimum separation between positive and negative switching thresholds, improving noise immunity and handling noisy or slow input signals.
- What are the typical applications of the CD40106B?
Typical applications include wave and pulse shapers, high-noise-environment systems, monostable multivibrators, and astable multivibrators.
- What is the quiescent current of the CD40106B at 20 V?
The quiescent current is 20 µA at 20 V.
- What is the maximum input current of the CD40106B at 18 V?
The maximum input current is 1 µA at 18 V over the full package temperature range.
- What are the propagation delay times for the CD40106B?
The propagation delay times are 140 ns at VDD = 5 V, 70 ns at VDD = 10 V, and 60 ns at VDD = 15 V.
- What are the transition times for the CD40106B?
The transition times are 100 ns at VDD = 5 V, 50 ns at VDD = 10 V, and 40 ns at VDD = 15 V.
- In what packages is the CD40106B available?
The CD40106B is available in various packages including SOIC (D), PDIP, CDIP, SO, and TSSOP.
