Overview
The ADS8507IBDWG4, produced by Texas Instruments, is a 16-bit, low-power, sampling analog-to-digital converter (ADC) designed for a wide range of applications. This device operates on a single 5-V supply and features a successive approximation register (SAR) architecture with an integrated sample and hold circuit, clock, reference, and data interface. It is highly versatile, supporting various input ranges including ±10 V, 4 V, and 5 V, and offers both parallel and serial data output interfaces.
The ADS8507IBDWG4 is optimized for low power consumption, with a typical power dissipation of 24 mW at 40 kSPS and a maximum power down mode of 50 µW. It is specified to operate over the industrial temperature range of -40°C to 85°C, making it suitable for harsh environments.
Key Specifications
| Parameter | Unit | Min | Typ | Max |
|---|---|---|---|---|
| Resolution | Bits | 16 | 16 | 16 |
| Sampling Rate | kHz | 40 | 40 | 40 |
| Input Ranges | V | ±10, 0-5, 0-4 | ||
| Integral Linearity Error (INL) | LSB | -1.5 | 1.5 | |
| Differential Linearity Error (DNL) | LSB | -1 | 1.5 | |
| Signal-to-Noise and Distortion Ratio (SINAD) | dB | 89.9 | ||
| Analog Supply Voltage | V | 4.75 | 5 | 5.25 |
| Digital Supply Voltage | V | 4.75 | 5 | 5.25 |
| Power Dissipation | mW | 24 | 30 | |
| Power Down Mode | µW | 50 | ||
| Operating Temperature Range | °C | -40 | 85 |
Key Features
- 16-bit successive approximation register (SAR) ADC with sample and hold circuit.
- Single 5-V analog supply and digital supply.
- Supports input ranges of ±10 V, 0-5 V, and 0-4 V.
- Low power dissipation: 24 mW typical at 40 kSPS and 50 µW maximum in power down mode.
- High accuracy: ±1.5 LSB INL, ±1.5 LSB DNL, and 89.9 dB SINAD with a 10 kHz input.
- SPI compatible serial interface and full parallel interface with BYTE select.
- Internal or external 2.5-V reference option.
- Pin-compatible with ADS7807 and ADS7806/8506.

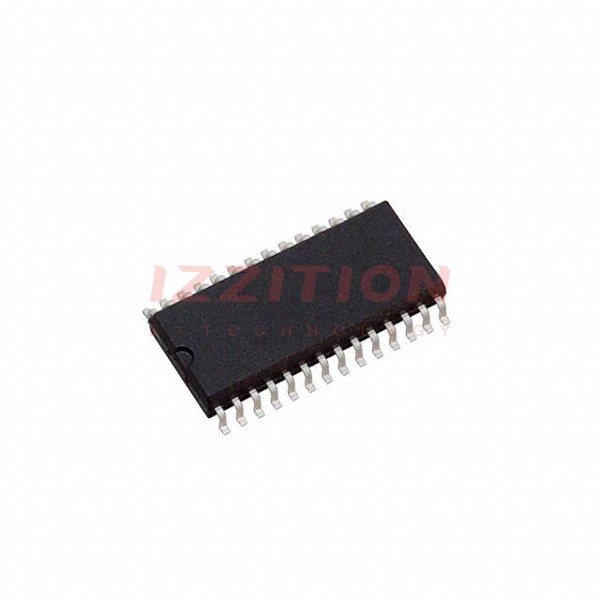

- 28-pin SO package.
Applications
- Industrial Process Control
- Test Equipment
- Medical Equipment
- Data Acquisition Systems
- Digital Signal Processing
- Instrumentation
Q & A
- What is the resolution of the ADS8507IBDWG4?
The resolution of the ADS8507IBDWG4 is 16 bits.
- What are the supported input ranges for the ADS8507IBDWG4?
The supported input ranges are ±10 V, 0-5 V, and 0-4 V.
- What is the typical power dissipation of the ADS8507IBDWG4 at 40 kSPS?
The typical power dissipation is 24 mW at 40 kSPS.
- What are the operating temperature ranges for the ADS8507IBDWG4?
The operating temperature range is -40°C to 85°C.
- Does the ADS8507IBDWG4 support both parallel and serial data output interfaces?
Yes, it supports both parallel and serial data output interfaces.
- What is the SINAD of the ADS8507IBDWG4 with a 10 kHz input?
The SINAD is 89.9 dB with a 10 kHz input.
- Can the ADS8507IBDWG4 use an external reference voltage?
Yes, it can use either an internal or an external 2.5-V reference voltage.
- What is the package type of the ADS8507IBDWG4?
The package type is a 28-pin SO package.
- Is the ADS8507IBDWG4 pin-compatible with other Texas Instruments ADCs?
Yes, it is pin-compatible with the ADS7807 and ADS7806/8506.
- What is the maximum power down mode of the ADS8507IBDWG4?
The maximum power down mode is 50 µW.
