Overview
The ADS7229IRSAT is a high-performance, 12-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This product is designed for applications requiring high-speed data acquisition with precision. The ADS7229IRSAT is well-suited for industrial automation, medical instrumentation, and communication systems, offering a balance of speed, accuracy, and power efficiency. Its unique selling points include a high sampling rate, low power consumption, and a compact package, making it a competitive choice in the ADC market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12 | bits | - |
| Sampling Rate | 1 | MSPS | - |
| Input Voltage Range | 0 to VREF | V | VREF = Reference Voltage |
| Power Consumption | 5.5 | mW | At 1 MSPS |
| Operating Temperature | -40 to +125 | °C | - |

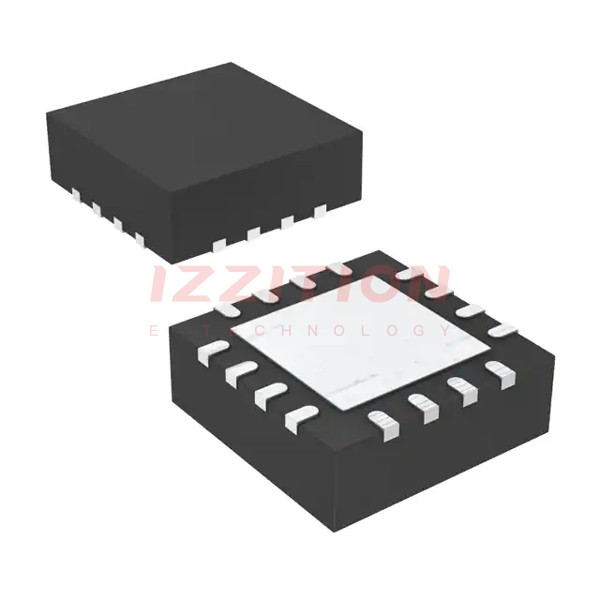

| Package | QFN-16 | - | Compact form factor |
| Interface | SPI | - | Serial Peripheral Interface |
| Supply Voltage | 2.7 to 5.25 | V | - |
| DNL | ±0.5 | LSB | Differential Non-Linearity |
| INL | ±0.75 | LSB | Integral Non-Linearity |
Key Features
- High-Speed Conversion: Capable of 1 MSPS, enabling rapid data acquisition.
- Low Power Consumption: Only 5.5 mW at 1 MSPS, ideal for power-sensitive applications.
- SPI Interface: Simplifies integration with microcontrollers and digital systems.
- Wide Supply Voltage Range: Operates from 2.7 V to 5.25 V, offering flexibility in power supply design.
- Compact QFN Package: Saves board space in compact designs.
Applications
The ADS7229IRSAT is widely used in various fields due to its high performance and versatility. In industrial automation, it is employed for precise monitoring and control of machinery. In medical instrumentation, it ensures accurate data acquisition for diagnostic equipment. Additionally, its high-speed conversion and low power consumption make it ideal for communication systems, where it enhances signal processing efficiency. Overall, the ADS7229IRSAT is a reliable choice for applications demanding high-speed and accurate analog-to-digital conversion.
Q & A
1. What is the resolution of the ADS7229IRSAT?
The ADS7229IRSAT has a resolution of 12 bits.
2. What is the maximum sampling rate of the ADS7229IRSAT?
The maximum sampling rate is 1 MSPS (Mega Samples Per Second).
3. What is the operating voltage range of the ADS7229IRSAT?
The operating voltage range is from 2.7 V to 5.25 V.
4. What interface does the ADS7229IRSAT use?
It uses an SPI (Serial Peripheral Interface) for communication.
5. What is the power consumption of the ADS7229IRSAT at 1 MSPS?
The power consumption is 5.5 mW at 1 MSPS.
6. What is the package type of the ADS7229IRSAT?
It comes in a QFN-16 package.
7. What is the input voltage range of the ADS7229IRSAT?
The input voltage range is from 0 V to VREF, where VREF is the reference voltage.
8. What is the operating temperature range of the ADS7229IRSAT?
The operating temperature range is from -40°C to +125°C.
9. What is the DNL (Differential Non-Linearity) of the ADS7229IRSAT?
The DNL is ±0.5 LSB.
10. What is the INL (Integral Non-Linearity) of the ADS7229IRSAT?
The INL is ±0.75 LSB.
