Overview
The ADS1210UG4, produced by Texas Instruments, is a precision 24-bit delta-sigma Analog-to-Digital (A/D) converter. This component operates from a single +5V supply and is designed for high dynamic range and low noise applications. It features differential inputs, making it ideal for direct connection to transducers or low-level voltage signals. The ADS1210UG4 includes a programmable gain amplifier (PGA), a second-order delta-sigma modulator, a programmable digital filter, and a serial interface for data transfer. It also supports internal and external reference options and on-chip self-calibration to correct for internal offset and gain errors.
Key Specifications
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Number of Bits | - | - | 24 | - |
| Sampling Rate | - | - | 16 kSPS | - |
| Input Type | - | - | Differential | - |
| Data Interface | - | - | SPI | - |
| Supply Voltage (Analog) | 4.75 | 5 | 5.25 | V |
| Supply Voltage (Digital) | 4.75 | 5 | 5.25 | V |
| Operating Temperature | -40 | - | 85 | °C |

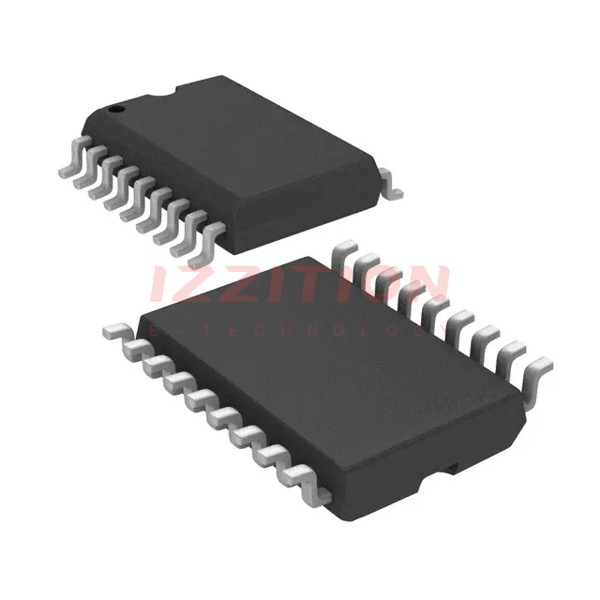

| Package | - | - | 18-SOIC (0.295", 7.50mm Width) | - |
Key Features
- Delta-Sigma Architecture: Ensures high dynamic range and resolution up to 24 bits.
- Programmable Gain Amplifier (PGA): User-programmable gains of 1, 2, 4, 8, or 16 to increase the dynamic range and simplify the interface to transducers.
- Differential Inputs: Ideal for direct connection to transducers or low-level voltage signals.
- Flexible SPI Interface: Supports both self-clocked (Master Mode) and externally clocked (Slave Mode) operations.
- Internal/External Reference: Allows for either internal 2.5V reference or external reference use.
- On-Chip Self-Calibration: Corrects for internal offset and gain errors, and can be run manually or continuously in the background).
- Turbo Mode: Increases the sampling rate up to 312 kHz, enhancing performance without significant changes in power consumption).
Applications
The ADS1210UG4 is suitable for various applications requiring high precision and low noise, such as:
- Industrial Automation: For precise measurement and control in industrial environments.
- Medical Devices: For accurate signal conversion in medical equipment.
- Test and Measurement: For high-resolution data acquisition in testing and measurement instruments.
- Environmental Monitoring: For precise monitoring of environmental parameters.
Q & A
- What is the resolution of the ADS1210UG4?
The ADS1210UG4 has a 24-bit resolution.
- What is the sampling rate of the ADS1210UG4?
The sampling rate can be up to 16 kSPS, and with Turbo Mode, it can be increased up to 312 kHz.
- What type of inputs does the ADS1210UG4 have?
The ADS1210UG4 has differential inputs.
- What data interface does the ADS1210UG4 use?
The ADS1210UG4 uses an SPI-compatible serial interface.
- Can the ADS1210UG4 use both internal and external references?
Yes, the ADS1210UG4 supports both internal and external reference options.
- Does the ADS1210UG4 have on-chip calibration capabilities?
Yes, the ADS1210UG4 includes on-chip self-calibration to correct for internal offset and gain errors.
- What is the operating temperature range of the ADS1210UG4?
The operating temperature range is from -40°C to 85°C.
- What is the package type of the ADS1210UG4?
The ADS1210UG4 comes in an 18-SOIC package.
- Can the ADS1210UG4 be used in high dynamic range applications?
Yes, the delta-sigma architecture and programmable gain amplifier make it suitable for high dynamic range applications.
- Is the ADS1210UG4 RoHS compliant?
Yes, the ADS1210UG4 is RoHS compliant.
