Overview

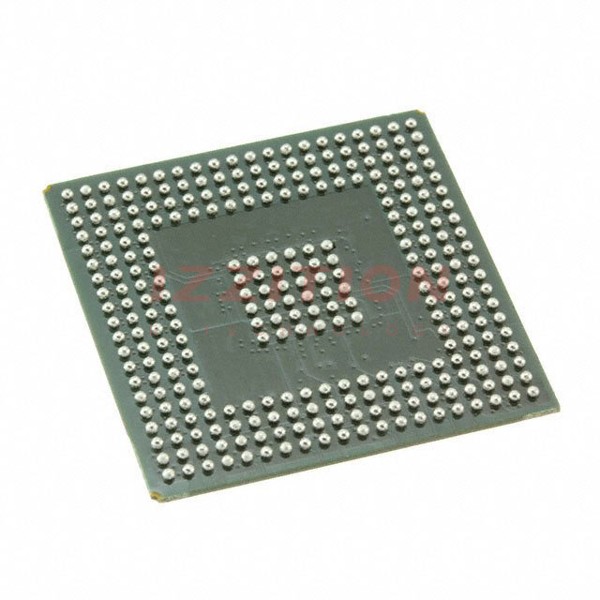

The ADC12D1800CIUT is a 12-bit, ultra-high-speed analog-to-digital converter (ADC) produced by Texas Instruments. It is part of TI's Ultra-High-Speed ADC family and builds upon the features, architecture, and functionality of the 10-bit GHz family of ADCs. This converter is capable of operating at either 3.6 GSPS in interleaved mode or 1.8 GSPS in dual ADC mode, making it highly versatile for various high-speed applications. The ADC is packaged in a 292-ball thermally enhanced BGA package and operates over an industrial temperature range of –40°C to +85°C.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 Bits |
| Sampling Rate | 3.6 GSPS (interleaved), 1.8 GSPS (dual) |
| Noise Floor Density | –153.5 dBm/Hz (typ) |
| IMD3 | –61 dBFS (typ) |
| Noise Power Ratio | 48.5 dB (typ) |
| Power Consumption | 4.4 W (typ) |
| Full Power Bandwidth | 1.75 GHz (typ) for 3.6 GSPS, 2.8 GHz (typ) for 1.8 GSPS |
| ENOB | 9.4 (typ) |
| SNR | 58.5 dB (typ) |
| SFDR | 73 dBc (typ) |
| Package | 292-ball BGA (NXA) |
| Operating Temperature Range | –40°C to +85°C |
| Power Supply | Single 1.9-V ± 0.1-V |
Key Features
- Configurable to either 3.6 GSPS interleaved or 1.8 GSPS dual ADC mode
- Pin-compatible with ADC10D1000/1500 and ADC12D1000/1600
- Internally terminated, buffered, differential analog inputs
- Interleaved timing automatic and manual skew adjust
- Test patterns at output for system debug
- Programmable 15-bit gain and 12-bit plus sign offset
- Programmable ADAdjust feature
- 1:1 non-demuxed or 1:2 demuxed LVDS outputs
- AutoSync feature for multi-chip systems
- Flexible LVDS interface compatible with IEEE 1596.3-1996 and programmable common mode voltage
Applications
The ADC12D1800CIUT is suitable for a variety of high-speed applications, including:
- Radar systems
- High-speed data acquisition systems
- Medical imaging equipment
- Test and measurement instruments
- Wireless communication systems requiring high-speed ADCs
Q & A
- What is the resolution of the ADC12D1800CIUT?
The resolution of the ADC12D1800CIUT is 12 bits.
- What are the sampling rate options for the ADC12D1800CIUT?
The ADC12D1800CIUT can operate at either 3.6 GSPS in interleaved mode or 1.8 GSPS in dual ADC mode.
- What is the power consumption of the ADC12D1800CIUT?
The typical power consumption of the ADC12D1800CIUT is 4.4 W.
- What is the operating temperature range of the ADC12D1800CIUT?
The operating temperature range is –40°C to +85°C.
- What type of package does the ADC12D1800CIUT come in?
The ADC12D1800CIUT is packaged in a 292-ball BGA (NXA) package.
- Does the ADC12D1800CIUT support programmable gain and offset?
Yes, the ADC12D1800CIUT supports programmable 15-bit gain and 12-bit plus sign offset.
- What type of output interface does the ADC12D1800CIUT have?
The ADC12D1800CIUT has a flexible LVDS interface compatible with IEEE 1596.3-1996 and supports programmable common mode voltage.
- Is the ADC12D1800CIUT pin-compatible with other ADC models?
Yes, it is pin-compatible with ADC10D1000/1500 and ADC12D1000/1600.
- What is the full power bandwidth of the ADC12D1800CIUT?
The full power bandwidth is 1.75 GHz for 3.6 GSPS and 2.8 GHz for 1.8 GSPS.
- Does the ADC12D1800CIUT support test patterns for system debug?
Yes, it supports test patterns at the output for system debug.
