Overview
The ADC12D1600CIUT from Texas Instruments is a high-performance, 12-bit analog-to-digital converter (ADC) designed for ultra-high-speed applications. This device is part of TI's Ultra High-Speed ADC family and builds upon the features and architecture of the 10-bit GHz family of ADCs. It is configurable to operate as either a dual 1.6-GSPS or a single 3.2-GSPS ADC, making it highly versatile for various high-speed data acquisition needs.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | Dual 1.6 GSPS or Single 3.2 GSPS |

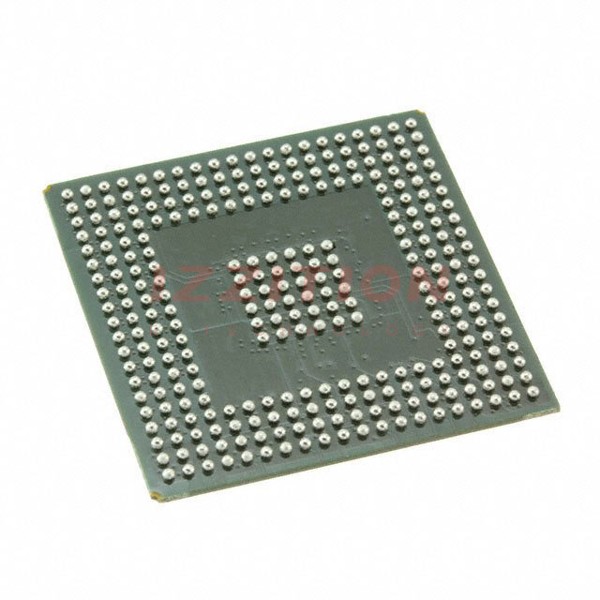

| Package Type | BGA (NXA) with 292 pins |
| Operating Temperature Range | -40°C to 85°C |
| Power Supply | Single 1.9-V ± 0.1-V |
| Output Interface | LVDS, compatible with IEEE 1596.3-1996 |
Key Features
- Configurable to either 2.0/3.2 GSPS interleaved or 1.0/1.6 GSPS dual ADC
- Pin-compatible with ADC10D1x00 and ADC12D1x00
- Internally terminated, buffered, differential analog inputs
- Interleaved timing automatic and manual skew adjust
- Test patterns at output for system debug
- Programmable 15-bit gain and 12-bit plus sign offset
- Programmable ADAdjust feature
- 1:1 non-demuxed or 1:2 demuxed LVDS outputs
- AutoSync feature for multi-chip systems
Applications
The ADC12D1600CIUT is suitable for a variety of high-speed data acquisition applications, including:
- Radar and electronic warfare systems
- High-speed data acquisition systems
- Medical imaging and diagnostics
- Test and measurement equipment
- Wireless communication systems
Q & A
- What is the resolution of the ADC12D1600CIUT?
The ADC12D1600CIUT has a 12-bit resolution. - What are the sampling rate options for this ADC?
The ADC can operate as either a dual 1.6-GSPS or a single 3.2-GSPS ADC. - What type of package does the ADC12D1600CIUT come in?
The ADC is packaged in a BGA (NXA) package with 292 pins. - What is the operating temperature range of the ADC12D1600CIUT?
The operating temperature range is -40°C to 85°C. - What is the power supply requirement for this ADC?
The ADC requires a single 1.9-V ± 0.1-V power supply. - What type of output interface does the ADC12D1600CIUT use?
The ADC uses an LVDS output interface, compatible with IEEE 1596.3-1996. - Is the ADC12D1600CIUT pin-compatible with other ADC models?
Yes, it is pin-compatible with ADC10D1x00 and ADC12D1x00 models. - What are some of the key features of the ADC12D1600CIUT?
Key features include internally terminated, buffered, differential analog inputs, interleaved timing automatic and manual skew adjust, and programmable gain and offset. - What applications is the ADC12D1600CIUT suitable for?
It is suitable for high-speed data acquisition applications such as radar, medical imaging, test and measurement, and wireless communication systems. - Does the ADC12D1600CIUT support multi-chip systems?
Yes, it supports multi-chip systems with its AutoSync feature.
