Overview
The ADC12D1000CIUT from Texas Instruments is a 12-bit, ultra high-speed analog-to-digital converter (ADC) designed for high-performance applications. This device is part of TI's Ultra High-Speed ADC family and offers configurable sampling rates of 2.0 or 3.2 GSPS, making it suitable for demanding signal processing tasks. The ADC12D1000CIUT features a flexible LVDS interface with multiple SPI programmable options, facilitating easy integration into various board designs and FPGA/ASIC systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Bits | 12 | |
| Sampling Rate | 2.0 or 3.2 | GSPS |
| Input Type | Differential | |
| Number of Analog In Channels | 2 | |
| Supply Voltage | 1.9 ± 0.1 | V |
| Package Type | 292-BGA (27x27 mm) | |
| Operating Temperature Range | -40°C to 85°C | |
| Interface | LVDS, SPI programmable |
Key Features
- Configurable to either 2.0/3.2 GSPS interleaved or 1.0/1.6 GSPS dual ADC
- Pin-compatible with ADC10D1x00 family
- Internally terminated, buffered, differential analog inputs
- Programmable 15-bit gain and 12-bit plus sign offset
- Programmable tAD adjust feature
- AutoSync feature for multi-chip systems
- Test patterns at output for system debug
- 1:1 non-demuxed or 1:2 demuxed LVDS outputs
- Single 1.9-V ± 0.1-V power supply
Applications
- Wideband Communications
- Data Acquisition Systems
- RADAR and LIDAR
- Set-Top Boxes
- Consumer RF
- Software Defined Radios
Q & A
- What is the sampling rate of the ADC12D1000CIUT?
The ADC12D1000CIUT has a configurable sampling rate of 2.0 or 3.2 GSPS.
- What type of interface does the ADC12D1000CIUT use?
The ADC12D1000CIUT uses an LVDS interface with multiple SPI programmable options.
- How many analog input channels does the ADC12D1000CIUT have?
The ADC12D1000CIUT has 2 differential analog input channels.
- What is the operating temperature range of the ADC12D1000CIUT?
The operating temperature range is -40°C to 85°C.
- What is the package type of the ADC12D1000CIUT?

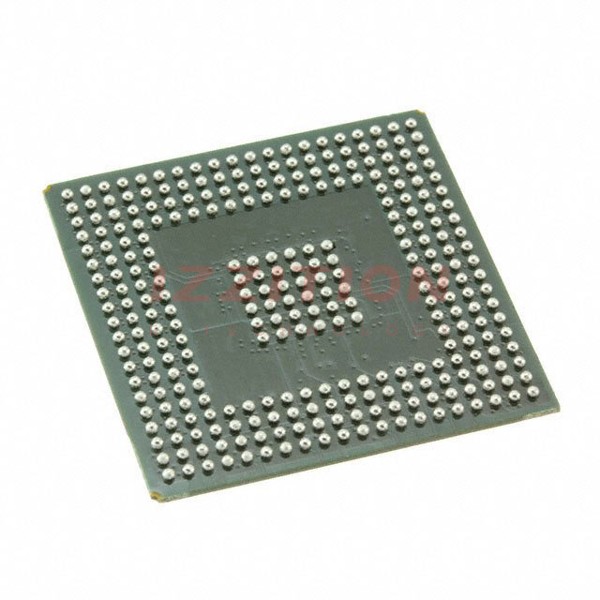

The ADC12D1000CIUT is packaged in a 292-pin thermally enhanced BGA package (27x27 mm).
- Does the ADC12D1000CIUT support multi-chip synchronization?
- Can the gain and offset of the ADC12D1000CIUT be programmed?
- What are some common applications of the ADC12D1000CIUT?
- How is the power supply for the ADC12D1000CIUT configured?
The ADC12D1000CIUT operates on a single 1.9-V ± 0.1-V power supply.
- Does the ADC12D1000CIUT support test patterns for system debug?
